| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74HCT14PW
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tube | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
SN74LVC1G11DBVRG4
IC GATE AND 1CH 3-INP SOT23-6
|
74LVC | Tape & Reel (TR) | Discontinued at | AND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G06DCKTE4
IC BUFFER INVERT 5.5V SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74LVC1G132DBVRG4
NAND GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
9015DM
GATE
|
- | Bulk | Active | NOR Gate | 10 | - | 4.5V ~ 5.5V | 1.32mA, 17.6mA | 0.9V | 1.7V |
|
74LVC2G132DCTRG4
IC GATE NAND SCHMITT 2CH 2IN SM8
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
74LVC1G132DBVTG4
IC GATE NAND 1CH 2-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|

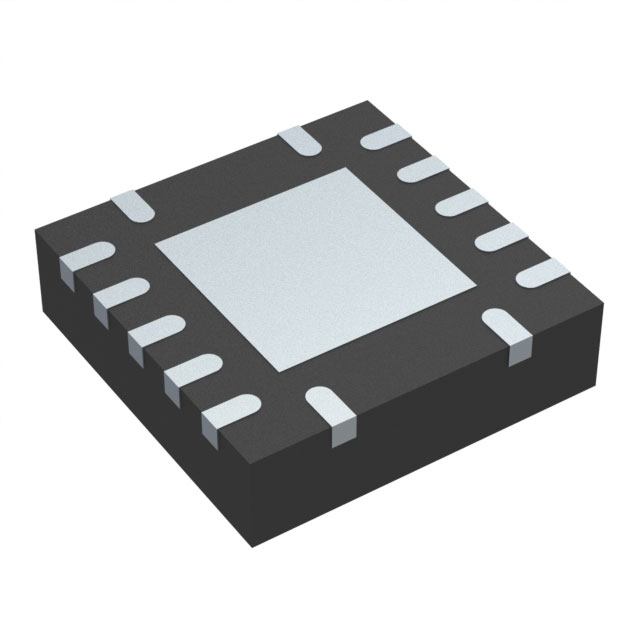

SN74LVC14ARGYRG4
IC INV SCHMITT 6CH 1-IN 14VQFN
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
SN74HCT32NE4
IC GATE NOR 2CH 4-INP 14DIP
|
74HCT | Bulk | Active | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.8V | 2V |
|
SN74LVC08ARGYRG4
IC GATE AND 4CH 2-INP 14VQFN
|
74LVC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC2G00YEAR
IC GATE NAND 2CH 2-INP 8DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
CD74HCT30EG4
IC GATE NAND 1CH 8-INP 14DIP
|
74HCT | Tube | Discontinued at | NAND Gate | 8 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
