| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ACT14NSRG4
IC INVERT SCHMITT 6CH 1-IN 14SOP
|
74ACT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 24mA, 24mA | 0.5V ~ 1.4V | 1.2V ~ 2.1V |
|
SN74HCT08NG4
IC GATE AND 4CH 2-INP 14DIP
|
74HCT | Tube | Discontinued at | AND Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74LVC1G10DSFR
IC GATE NAND 1CH 3-INP 6SON
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC04AQDREP
IC INVERTER 6CH 1-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
SN74ACT00N
IC GATE NAND 4CH 2-INP 14DIP
|
74ACT | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|

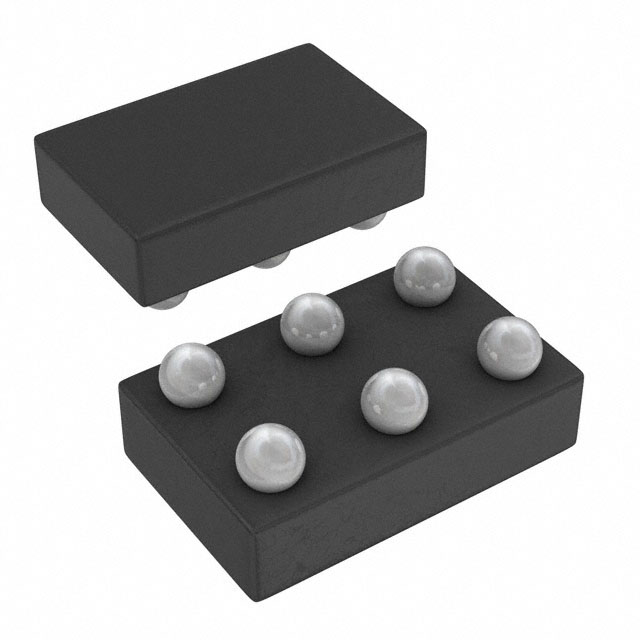

SN74LVC2G04YZPRB
MOS GENERAL PURP LOG
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC02PWLE
NOR GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
74ACT11032DBR
IC GATE OR 4CH 2-INP 16SSOP
|
74ACT | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC08ANSR
IC GATE AND 4CH 2-INP 14SOP
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G32QDCKRKN
OR GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|

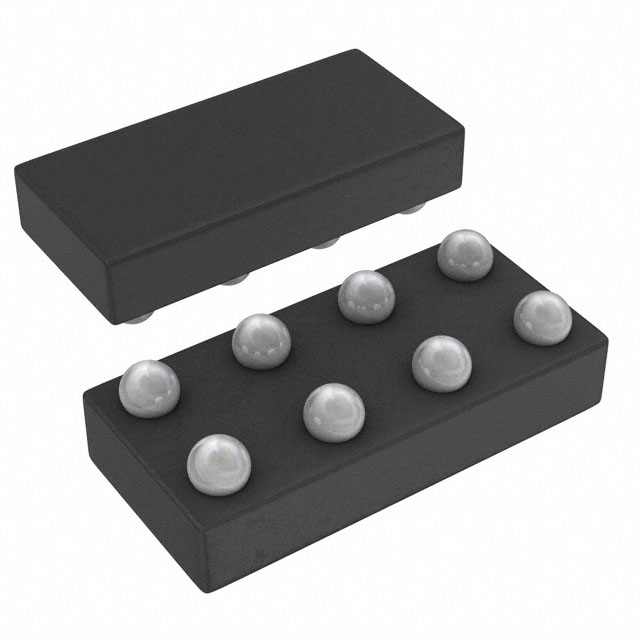

SN74LVC2G02YZAY
NOR GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC86ADBLE
XOR GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
