| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74ACT10MG4
IC GATE NAND 3CH 3-INP 14SOIC
|
74ACT | Tube | Discontinued at | NAND Gate | 3 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC1GU04YZAR
IC INVERTER 1CH 1-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
SN74LVC08ADT
IC GATE AND 4CH 2-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74LVC08AD
IC GATE AND 4CH 2-INP 14SOIC
|
74LVC | Tube | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G32DCKRE4
IC GATE OR 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC32ARGYR
IC GATE OR 4CH 2-INP 14VQFN
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD74ACT20E
IC GATE NAND 2CH 4-INP 14DIP
|
74ACT | Tube | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
SN74LVC32AD
IC GATE OR 4CH 2-INP 14SOIC
|
74LVC | Tube | Active | OR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

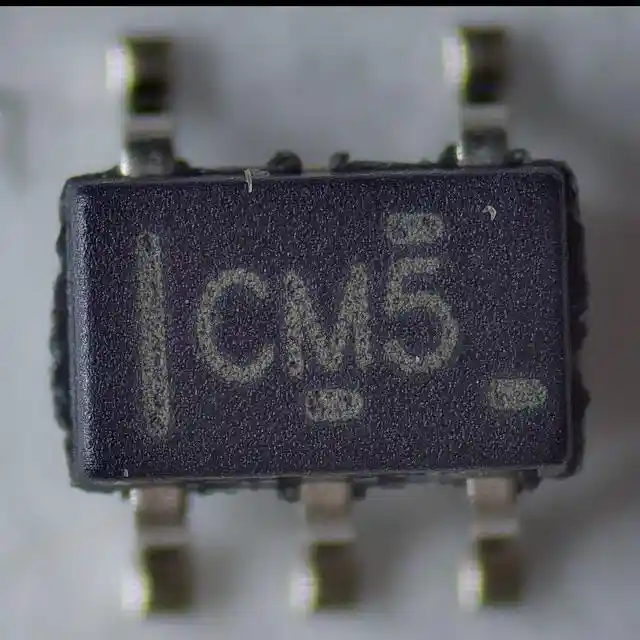

SN74LVC1G125DCKR
IC BUF NON-INVERT 5.5V SC70-5
|
74LVC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
SN74LVC1G02DCK3
MOS GENERAL PURP LOG
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
SN74ACT32DRE4
IC GATE OR 4CH 2-INP 14SOIC
|
74ACT | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
CD74HCT20EE4
2-CH, 4-INPUT, 4.5-V TO 5.5-V NA
|
74HCT | Tube | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
