| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC2G00DCTR
IC GATE NAND 2CH 2-INP SM8
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
74ACT11008DRG4
IC GATE AND 4CH 2-INP 16SOIC
|
74ACT | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC1G11DCKRE4
IC GATE AND 1CH 3-INP SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | AND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74ACT11DG4
IC GATE AND 3CH 3-INP 14SOIC
|
74ACT | Tube | Discontinued at | AND Gate | 3 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC00ANSR
IC GATE NAND 4CH 2-INP 14SOP
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
74AHCT1G02DBVRG4
IC GATE NOR 1CH 2-INP SOT23-5
|
74AHCT | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
SN74LVC14AD
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74LVC | Tube | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
SN74LVC1G32DCKT
IC GATE OR 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74AHC32QWBQARQ1
IC GATE OR 4CH 2-INP 14WQFN
|
Automotive, AEC-Q100, 74AHC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|

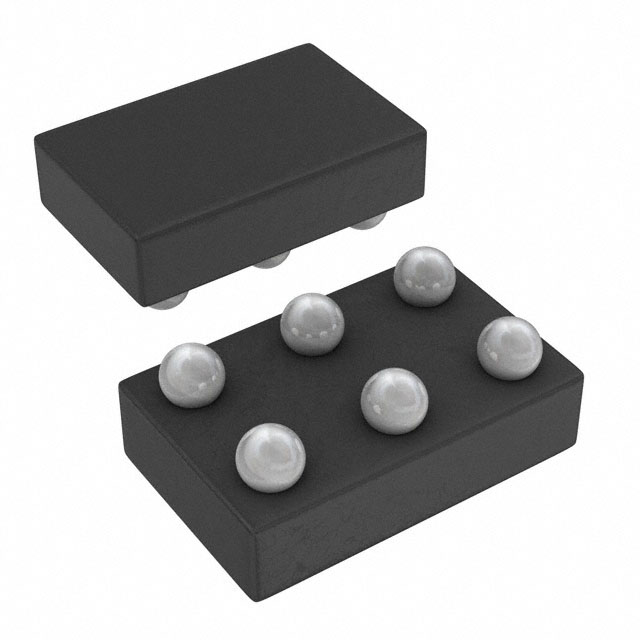

SN74LVC2G04YZPR
IC INVERTER 2CH 2-INP 6DSBGA
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74LVC2G08DCTR
IC GATE AND 2CH 2-INP SM8
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74ACT32DR
IC GATE OR 4CH 2-INP 14SOIC
|
74ACT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
