| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-9761801Q2A
MILITARY 4-CH, 2-INPUT, 2-V TO 3
|
54LVC | Tube | Active | OR Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G332DRY2
IC GATE OR 1CH 3-INP 6SON
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G27DCKR
IC GATE NOR 1CH 3-INP SC70-6
|
74LVC | Tape & Reel (TR) | Active | NOR Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CLVC1G125MDCKREP
IC BUF NON-INVERT 5.5V SC70-5
|
74LVC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
SN74LVC1G02DBVR
IC GATE NOR 1CH 2-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC06ADR
IC INVERTER OD 6CH 1-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 3.6V | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SNJ54S135J
XOR/XNOR GATE, S SERIES, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC2G132DCTR
IC GATE NAND SCHMITT 2CH 2IN SM8
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|

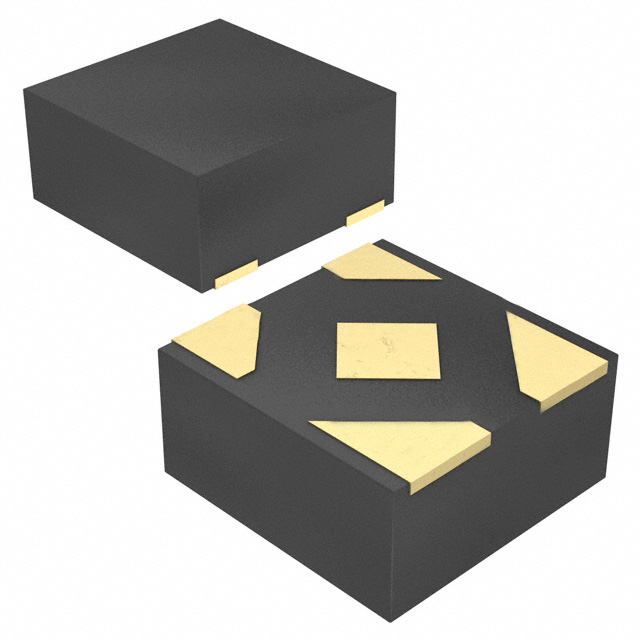

SN74LVC1G04DPWR
IC INVERTER 1CH 1-INP 4XDFN
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
|
5962-9761901Q2A
MILITARY 4-CH, 2-INPUT, 2-V TO 3
|
54LVC | Tube | Active | XOR (Exclusive OR) | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74HC21QDRG4Q1
IC GATE AND 2CH 4-INP 14SOIC
|
Automotive, AEC-Q100, 74HC | Tape & Reel (TR) | Discontinued at | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC14APWRE4
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
