| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AHC32QWBQARQ1
IC GATE OR 4CH 2-INP 14WQFN
|
Automotive, AEC-Q100, 74AHC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC1G86YZPR
IC GATE XOR 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC86DBLE
XOR GATE, LVC/LCX/Z SERIES
|
74LVC | Bulk | Active | - | - | - | - | - | - | - |
|
MM74HCT04J
IC INVERTER 6 CH 1 INP
|
74HCT | Bulk | Active | Inverter | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.8V | 2V |
|
SN74LVC32ANSR
IC GATE OR 4CH 2-INP 14SOP
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD74ACT05M96
IC INVERTER OD 6CH 1-INP 14SOIC
|
74ACT | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 4.5V ~ 5.5V | -, 24mA | 0.8V | 2V |
|

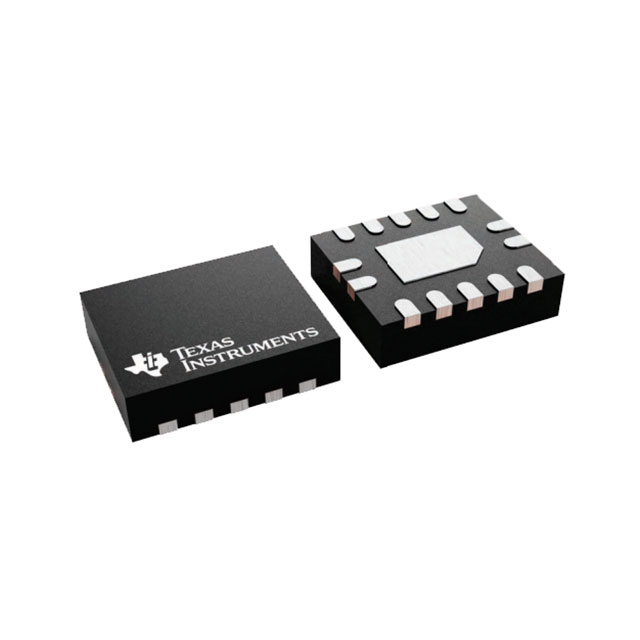

SN74HCS86QBQARQ1
AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO
|
Automotive, AEC-Q100, 74HC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
CD74HCT21M96
IC GATE AND 2CH 4-INP 14SOIC
|
74HCT | Tape & Reel (TR) | Active | AND Gate | 4 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
|
SN74LVC14ADRG3
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
SN74LVC1G11MDCKREP
IC GATE AND 1CH 3-INP SC70-6
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC10ADR
IC GATE NAND 3CH 3-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 3 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G02DRLR
IC GATE NOR 1CH 2-INP SOT5
|
74LVC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
