| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC00APWRG4
IC GATE NAND 4CH 2-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1GU04YZPR
IC INVERTER 1CH 1-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
SN74LVC08APW
IC GATE AND 4CH 2-INP 14TSSOP
|
74LVC | Tube | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
74AHCT1G14DCKTE4
IC INVERT SCHMITT 1CH 1IN SC70
|
74AHCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.6V | 2V |
|
SN74LVC1G06DPWR
IC BUFFER INVERT 5.5V 5X2SON
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74AHCT14BQAR
IC INVERT SCHMITT 6CH 6IN 14WQFN
|
74AHCT | Tape & Reel (TR) | Active | Inverter | 6 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 1.5V ~ 1.7V | 1.9V ~ 2.1V |
|

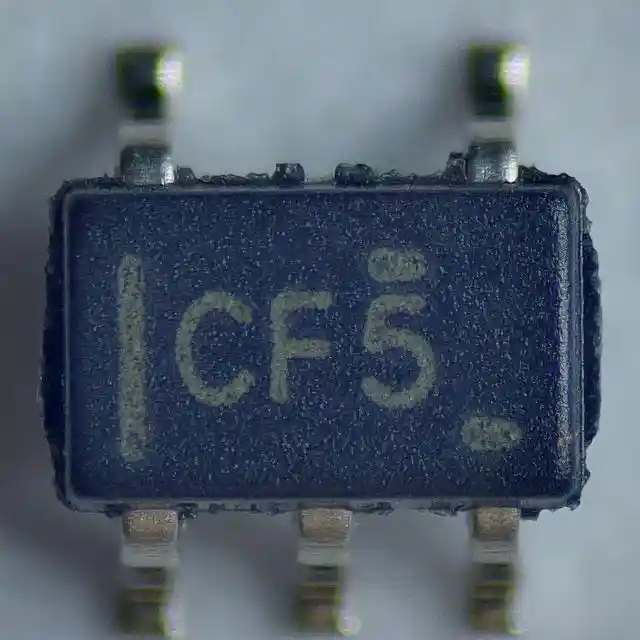

SN74LVC1G14DCKR
IC INVERT SCHMITT 1CH 1IN SC70
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
CD74HCT14MT
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74HCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|

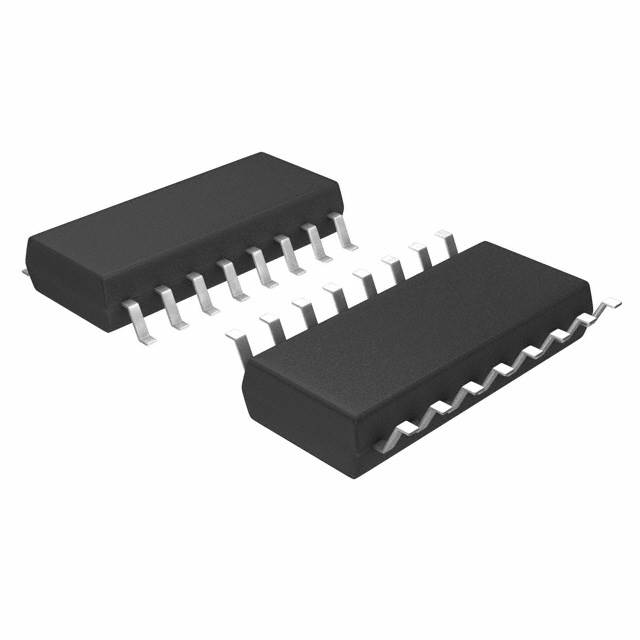

74ACT11000NSRE4
IC GATE NAND 4CH 2-INP 16SO
|
74ACT | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
SN74LVC1G00YZAR
IC GATE NAND 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74LVC1G00YZPR
IC GATE NAND 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HCT04APWRG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
