| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G00DSF2
IC GATE NAND 1CH 2-INP 6SON
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G02DRYR
IC GATE NOR 1CH 2-INP 6SON
|
74LVC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

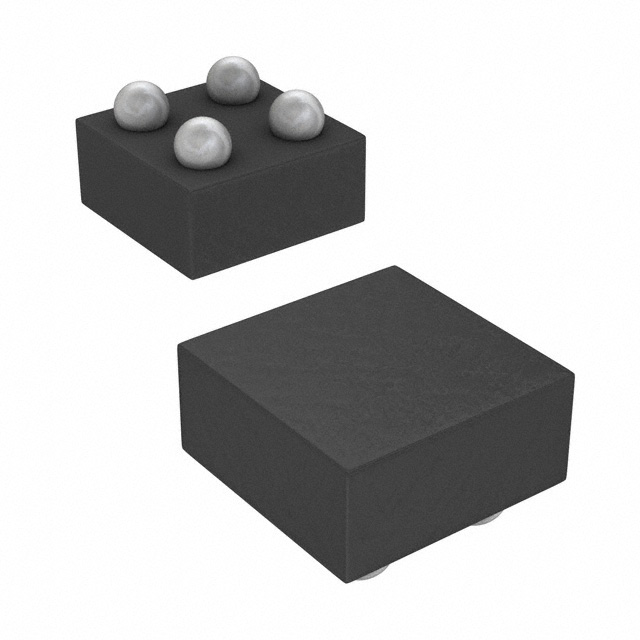

SN74LVC1G06YZTR
IC BUFFER INVERT 5.5V 4DSBGA
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74HCT04PW
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tube | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74ACT00D
IC GATE NAND 4CH 2-INP 14SOIC
|
74ACT | Tube | Discontinued at | NAND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC08ADBR
IC GATE AND 4CH 2-INP 14SSOP
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
DM7432N
OR GATE, TTL, PDIP14
|
- | Bulk | Active | OR Gate | 2 | - | 4.75V ~ 5.25V | 800µA, 16mA | 0.8V | 2V |
|
SN74LVC2G14DCKRG4
IC INVERT SCHMITT 2CH 2IN SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V |
|
|
SN74HCT04D
IC INVERTER 6CH 1-INP 14SOIC
|
74HCT | Tube | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
JM54AC20BCA
IC GATE NAND 2CH 4-INP 14CERDIP
|
- | Bulk | Active | NAND Gate | 4 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN74LVC06ADGVR
IC INVERTER OD 6CH 1-INP 14TVSOP
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 3.6V | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC14ADE4
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74LVC | Tube | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
