| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74S38NSR
IC GATE NAND OPEN 4CH 2-IN 14SOP
|
74S | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 60mA | 0.8V | 2V |
|
SN74AUC1G04DRLR
IC INVERTER 1CH 1-INP SOT5
|
74AUC | Tape & Reel (TR) | Active | Inverter | 1 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AHCT04PW
IC INVERTER 6CH 1-INP 14TSSOP
|
74AHCT | Tube | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
SN74S05D
IC INVERTER OPEN 6CH 1-IN 14SOIC
|
74S | Tube | Active | Inverter | 1 | Open Collector | 4.75V ~ 5.25V | -, 20mA | 0.8V | 2V |
|
SN74S10NSRG4
IC GATE NAND 3CH 3-INP 14SOP
|
74S | Tape & Reel (TR) | Obsolete | NAND Gate | 3 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|
SN74AUC2G86DCTR
IC GATE XOR 2CH 2-INP SM8
|
74AUC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AUC1G32YZAR
IC GATE OR 1CH 2-INP 5DSBGA
|
74AUC | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AHCT04PWR
IC INVERTER 6CH 1-INP 14TSSOP
|
74AHCT | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
SN74AUC2GU04DBVR
IC INVERTER 2CH 2-INP SOT23-6
|
74AUC | Tape & Reel (TR) | Active | Inverter | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | - | - |
|
|
SN74AUC1G14YZPR
IC INVERT SCHMITT 1CH 1IN 5DSBGA
|
74AUC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 0.8V ~ 2.7V | 9mA, 9mA | 0.22V ~ 0.58V | 0.5V ~ 1.56V |
|
SN74AUC2G00YEPR
IC GATE NAND 2CH 2-INP 8DSBGA
|
74AUC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|

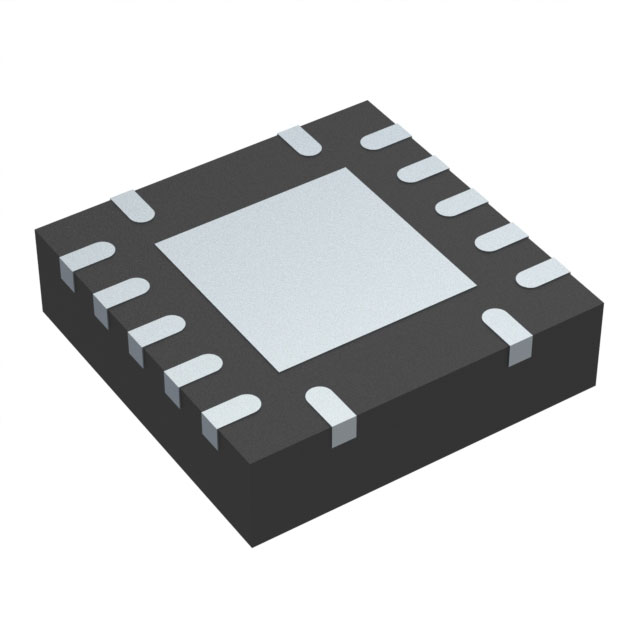

SN74AHCT02RGYRG4
IC GATE NOR 4CH 2-INP 14-VQFN
|
74AHCT | Bulk | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
