| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCT02DT
IC GATE NOR 4CH 2-INP 14SOIC
|
74HCT | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
CD4023BF
CMOS TRIPLE 3-INPUT NAND GATE 14
|
- | Tube | Active | NAND Gate | 3 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
M38510/05252BCA
IC GATE NOR 4CH 2-INP 14CDIP
|
- | Tube | Active | NOR Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD74HCT132EG4
IC GATE NAND 4CH 2IN 14DIP
|
74HCT | Tube | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|

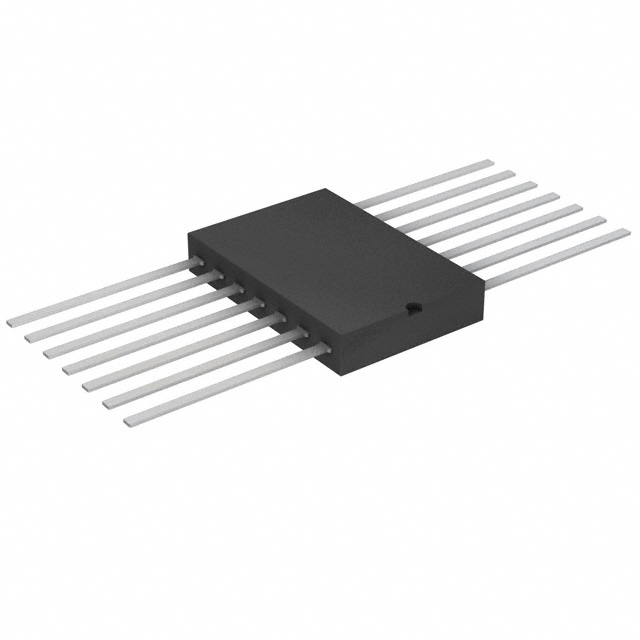

5962-8754903VDA
IC GATE NAND 4CH 2-INP 14CFP
|
- | Bulk | Active | NAND Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.1V ~ 0.36V | 2.56V ~ 4.86V |
|
|
JM38510/30501SCA
IC GATE OR 4CH 2-INP 14CDIP
|
54LS | Tube | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
|
M38510/00105BCA
IC INVERTER 6CH 6-INP 14CDIP
|
- | Tube | Active | Inverter | 6 | - | 4.5V ~ 5.5V | 400µA, 16mA | 0.8V | 2V |
|
|
8404401CA
MILITARY 2-CH, 4-INPUT, 2-V TO 6
|
- | Tube | Active | NOR Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
5962-8761203VDA
IC GATE NOR 4CH 2-INP 14CFP
|
- | Bulk | Active | NOR Gate | 2 | - | 1.5V ~ 5.5V | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V |
|
|
SNJ54LS08W
IC GATE AND 4CH 2-INP 14CFP
|
54LS | Tube | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
|
SNJ54LS02FK
IC GATE NOR 4CH 2-INP 20LCCC
|
54LS | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74AHCT1G08DCKR
IC GATE AND 1CH 2-INP SC70-5
|
74AHCT | Tape & Reel (TR) | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
