| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNJ54LS02FK
IC GATE NOR 4CH 2-INP 20LCCC
|
54LS | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74AHCT1G08DCKR
IC GATE AND 1CH 2-INP SC70-5
|
74AHCT | Tape & Reel (TR) | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
M38510/00401BCA
IC GATE NOR 4CH 2-INP 14CDIP
|
- | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 16mA | 0.8V | 2V |
|
SN74AHCT02PW
IC GATE NOR 4CH 2-INP 14TSSOP
|
74AHCT | Tube | Discontinued at | NOR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
DM54LS21J/883
AND GATE, LS SERIES
|
- | Bulk | Active | AND Gate | 4 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74AHCT02DR
IC GATE NOR 4CH 2-INP 14SOIC
|
74AHCT | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|

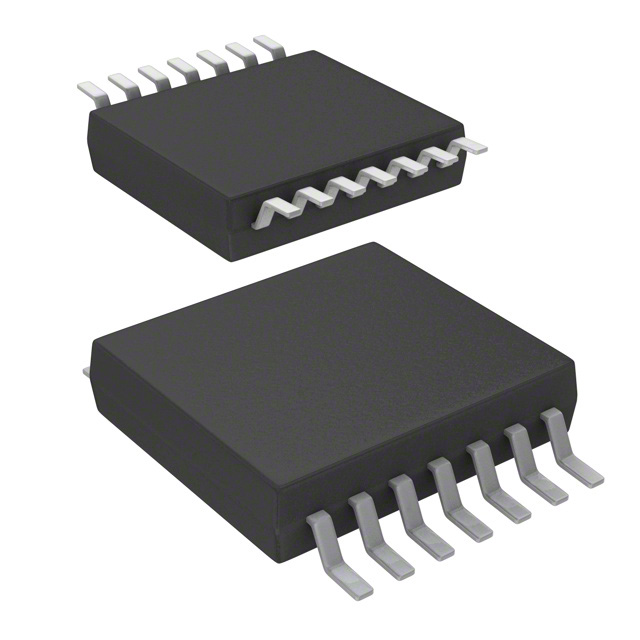

SN74AHCT132DGVR
IC GATE NAND 4CH 2-INP 14TVSOP
|
74AHCT | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
54F86DC
XOR GATE, F/FAST SERIES
|
- | Bulk | Active | XOR (Exclusive OR) | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
|
CD4002BE-NG
PROTOTYPE
|
- | Bulk | Active | NOR Gate | 4 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74AHCT14N
IC INVERT SCHMITT 6CH 1-IN 14DIP
|
74AHCT | Tube | Active | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
|
JM4001BBDA
QUAD 2 INPUT NOR BUFFERED B SERI
|
- | Bulk | Active | NOR Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74AHCT00RGYR
IC GATE NAND 4CH 2-INP 14VQFN
|
74AHCT | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
