| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUC1G06YEPR
IC INVERTER OD 1CH 1-INP 5DSBGA
|
74AUC | Tape & Reel (TR) | Obsolete | Inverter | 1 | Open Drain | 0.8V ~ 2.7V | -, 9mA | 0V ~ 0.7V | 1.7V |
|
5962-87722012A
MILITARY 3-CH, 3-INPUT, 2-V TO 6
|
54HC | Tube | Active | OR Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74AUP1G08YZPR
IC GATE AND 1CH 2-INP 5DSBGA
|
74AUP | Tape & Reel (TR) | Active | AND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
5962-8984502VCA
SPACE 4-CH, 4-INPUT, 2-V TO 6-V
|
54HC | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
|
SN54HC273VTDG2
IC GATE AND 4CH 2-INP DIE
|
54HC | Tube | Active | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | - | - |
|
SN74AUP2G04DCKR
IC INVERTER 2CH 2-INP SC70-6
|
74AUP | Tape & Reel (TR) | Active | Inverter | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
JM38510/65001BCA
MILITARY 4-CH, 2-INPUT, 2-V TO 6
|
54HC | Tube | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74AUP2G02YFPR
IC GATE NOR 2CH 2-INP 8DSBGA
|
74AUP | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
SNJ54HC00W
MILITARY 4-CH, 2-INPUT, 2-V TO 6
|
54HC | Tube | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

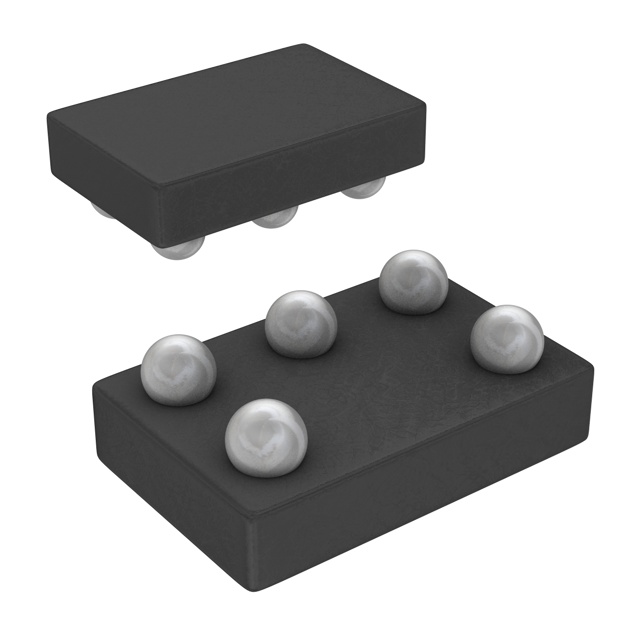

SN74AUP1G32YZPR
IC GATE OR 1CH 2-INP 5DSBGA
|
74AUP | Tape & Reel (TR) | Active | OR Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
SNJ54HC14FK
MILITARY 6-CH, 2-V TO 6-V INVERT
|
54HC | Tube | Active | Inverter | 6 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V |
|
|
SN54HC273VTDG1
IC GATE AND 4CH 2-INP DIE
|
54HC | Tube | Active | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | - | - |
