| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G32DSFR
IC GATE OR 1CH 2-INP 6SON
|
74AUP | Tape & Reel (TR) | Active | OR Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
SN74S37D
IC GATE NAND 4CH 2-INP 14SOIC
|
74S | Tube | Active | NAND Gate | 2 | - | 4.75V ~ 5.25V | 3mA, 60mA | 0.8V | 2V |
|
SN74AUC2G86DCURG4
IC GATE XOR 2CH 2-INP 8VSSOP
|
74AUC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
SN74AUP1G00DRLR
IC GATE NAND 1CH 2-INP SOT5
|
74AUP | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
SN74AUP1T14DCKR
IC INVERT SCHMITT 1CH 1IN SC70
|
74AUP | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2.3V ~ 3.6V | 4mA, 4mA | 0.35V ~ 0.5V | 1.1V ~ 1.19V |
|
SN74AUP2G14DRYR
IC INVERT SCHMITT 2CH 2-INP 6SON
|
74AUP | Tape & Reel (TR) | Active | Inverter | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V |
|
SN74S132DG4
IC GATE NAND 4CH 2-INP 14SOIC
|
74S | Tube | Obsolete | NAND Gate | 2 | Schmitt Trigger | 4.75V ~ 5.25V | 1mA, 20mA | 1.1V | 1.9V |
|

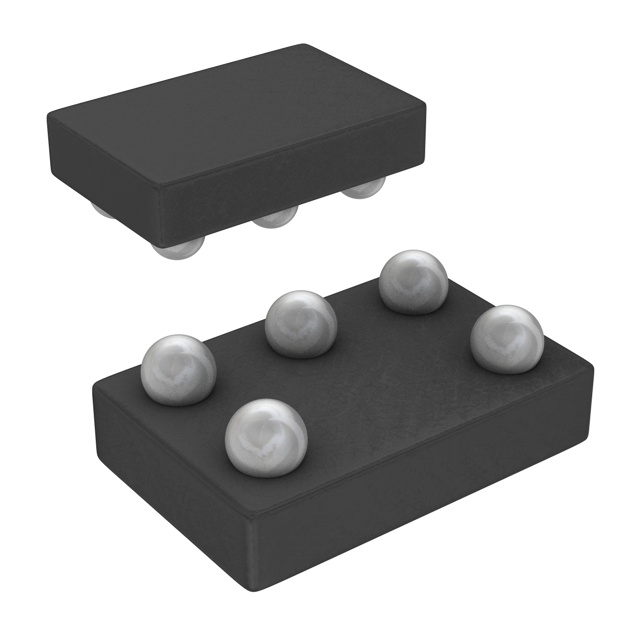

SN74AUC1G00YZAR
IC GATE NAND 1CH 2-INP 5DSBGA
|
74AUC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
|
SN74AUP1G14DRLR
IC INVERT SCHMITT 1CH 1-INP SOT5
|
74AUP | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 0.8V ~ 3.6V | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V |
|
SN74AUC1G02DBVR
IC GATE NOR 1CH 2-INP SOT23-5
|
74AUC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
|
|
SN74AUP2G00DCUR
IC GATE NAND 2CH 2-INP 8VSSOP
|
74AUP | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
SN74AUC1G32DCKR
IC GATE OR 1CH 2-INP SC70-5
|
74AUC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 0.8V ~ 2.7V | 9mA, 9mA | 0V ~ 0.7V | 1.7V |
