| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21362JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR2101PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|

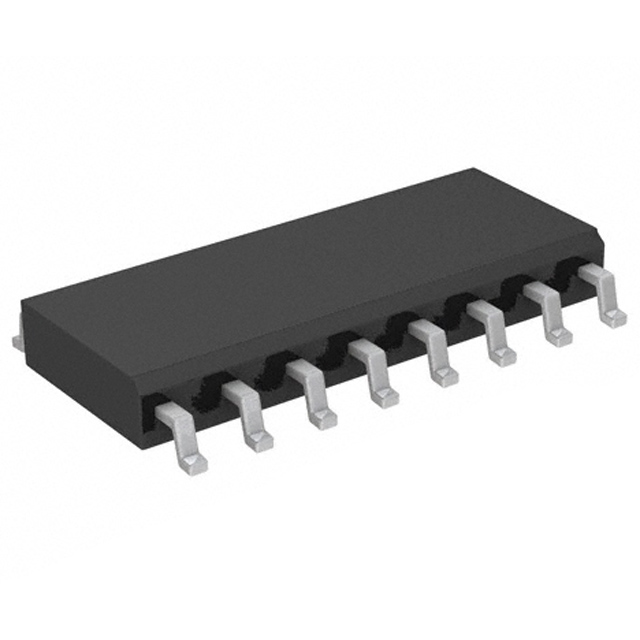

IR2086SPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 9.5V ~ 15V | - | 1.2A, 1.2A |
|
IRS2609DSPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
IR2130JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Bulk | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

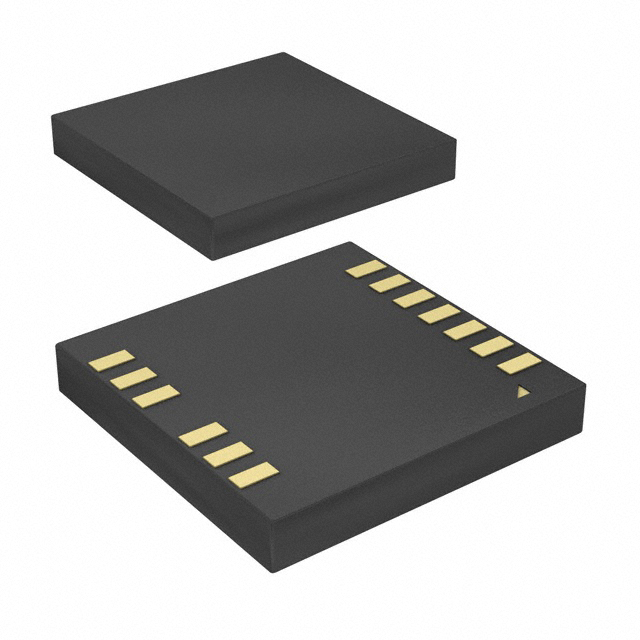

2EDF7235KXUMA1
IC GATE DRVR HALF-BRIDG TFLGA-13
|
EiceDriver™ | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 4A, 8A |
|
IR2130SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Not For New Designs | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR2184PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IRS2607DSTRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
IR2117SPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tube | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|

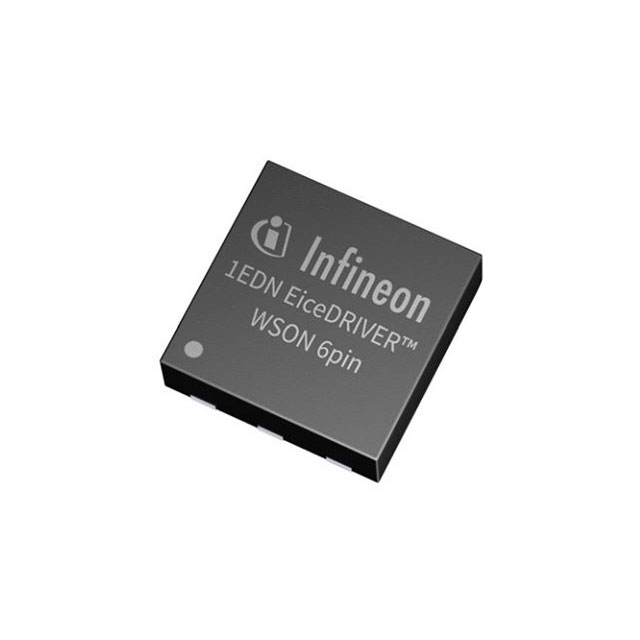

1EDN7512GXTMA1
IC GATE DRVR LOW-SIDE 6WSON
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A |
|

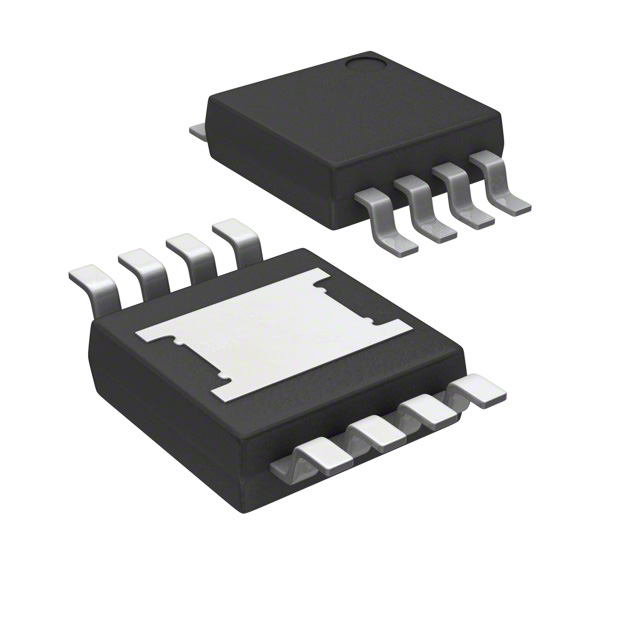

2EDN7524RXUMA1
IC GATE DRVR LOW-SIDE TSSLP-8
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A |
