| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UC3710TG3
IC GATE DRVR LOW-SIDE TO220-5
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.7V ~ 18V | 0.8V, 2V | 6A, 6A |
|
UC3709N
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 5V ~ 40V | 0.8V, 2.2V | 1.5A, 1.5A |
|
LM5111-2M/NOPB
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 3.5V ~ 14V | 0.8V, 2.2V | 3A, 5A |
|
UCC21222QDRQ1
IC GATE DRVR HALF-BRIDGE 16SOIC
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3V ~ 5.5V | 1.25V, 1.6V | 4A, 6A |
|

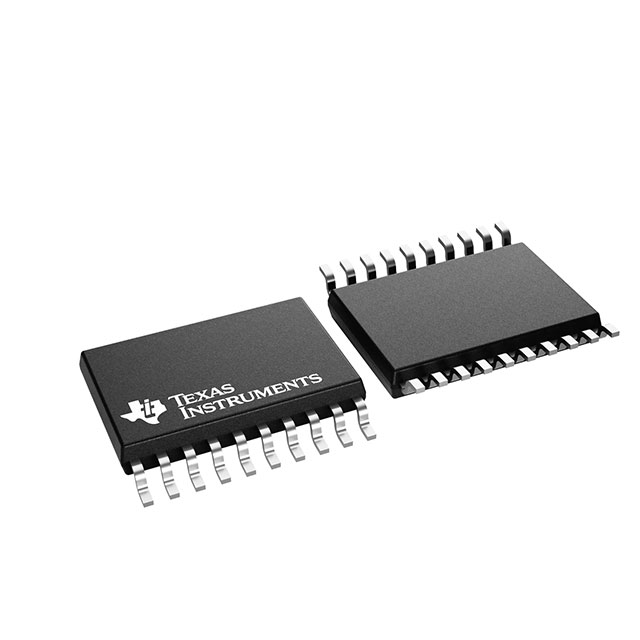

DRV8300UDPWR
100-V MAX SIMPLE THREE-PHASE GAT
|
Automotive | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 3 | N-Channel MOSFET | 8.7V ~ 20V | 0.8V, 2V | 750mA, 1.5A |
|
LM5134BMF/NOPB
IC GATE DRVR LOW-SIDE SOT23-6
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 12.6V | 0.8V, 2.4V | 4.5A, 7.6A |
|
UCC27524DGN
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Bulk | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.3V | 5A, 5A |
|
|
UCC37322DGN
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Bulk | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 15V | 1.1V, 2.7V | 9A, 9A |
|
|
UCC27523D
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.3V | 5A, 5A |
|

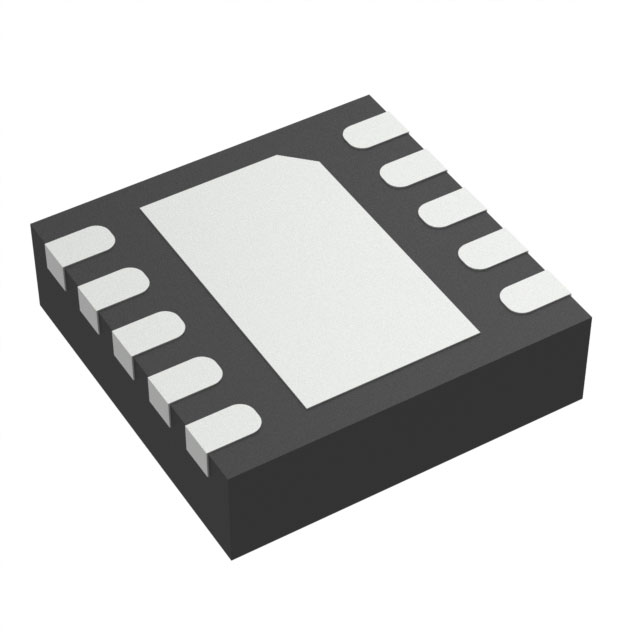

LM5108DRCR
IC GATE DRVR PWR MGMT
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 5.5V ~ 16V | - | 1.6A, 2.6A |
|
|
UCC27531QDBVRQ1
IC GATE DRVR LOW-SIDE SOT23-6
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 32V | 1.2V, 2.2V | 2.5A, 5A |
|
TPS28225D
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 8.8V | - | - |
