| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

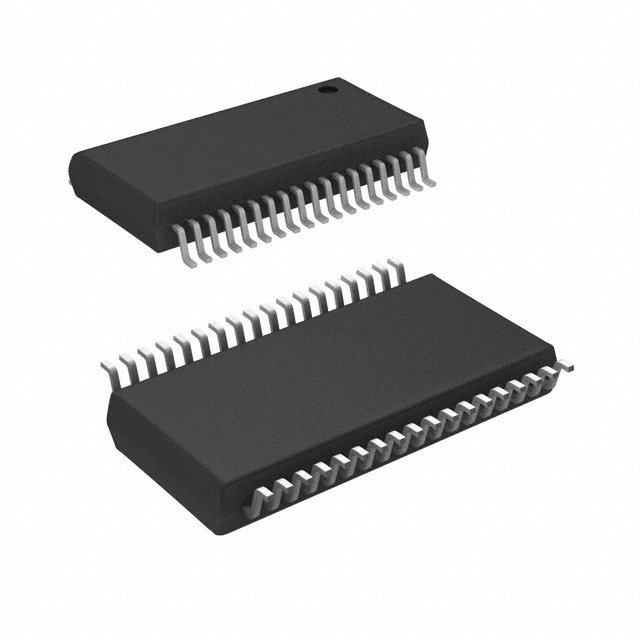

UCC5870QDWJRQ1
AUTOMOTIVE, FUNCTIONAL SAFETY CO
|
Automotive, AEC-Q100, Functional Safety (FuSa) | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, SiC MOSFET | 3V ~ 5.5V, 15V ~ 30V | 1.5V, 3V | 15A, 15A |
|
UCC21222QDQ1
IC GATE DRVR HALF-BRIDGE 16SOIC
|
Automotive, AEC-Q100 | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3V ~ 5.5V | 1.25V, 1.6V | 4A, 6A |
|
TPS28225DRBT
IC GATE DRVR HALF-BRIDGE 8SON
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 8.8V | - | - |
|
UCC27512MDRSTEP
IC GATE DRVR LOW-SIDE 6SON
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 4A, 8A |
|
UCC27712QDRQ1
IC GATE DRVR HALF-BRIDGE 8SOIC
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1.5V, 1.6V | 1.8A, 2.8A |
|
|
UCC27524AD
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.3V | 5A, 5A |
|
UCC27517DBVR
IC GATE DRVR LOW-SIDE SOT23-5
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 4A, 4A |
|
UCC27528DSDT
IC GATE DRVR LOW-SIDE 8SON
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | - | 5A, 5A |
|

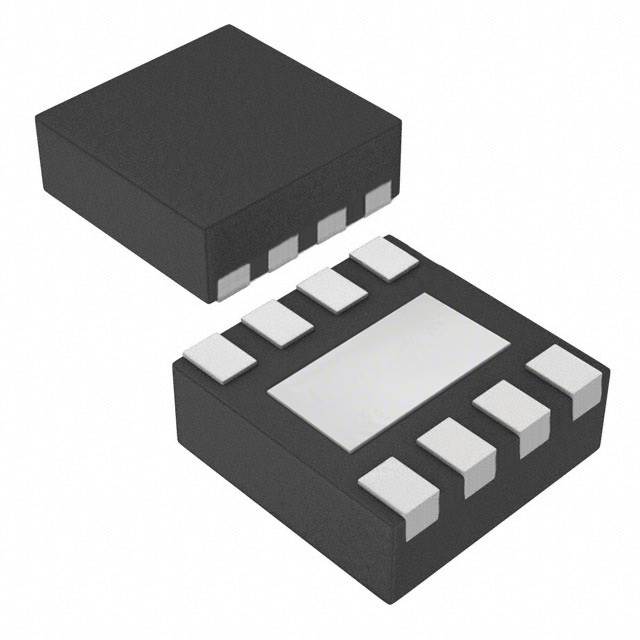

LM5109BSDX/NOPB
IC GATE DRVR HALF-BRIDGE 8WSON
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.2V | 1A, 1A |
|
|
UCC27512DRSR
IC GATE DRVR LOW-SIDE 6SON
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 4A, 8A |
|
UCC27201ADDA
IC GATE DRVR HALF-BRIDGE 8SOPWR
|
- | Bulk | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 0.8V, 2.5V | 3A, 3A |
|
LM5060MM/NOPB
IC GATE DRVR HIGH-SIDE 10VSSOP
|
- | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel MOSFET | 5.5V ~ 65V | 0.8V, 2V | 24µA, 2.2mA |
