| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR4427PBF
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A |
|

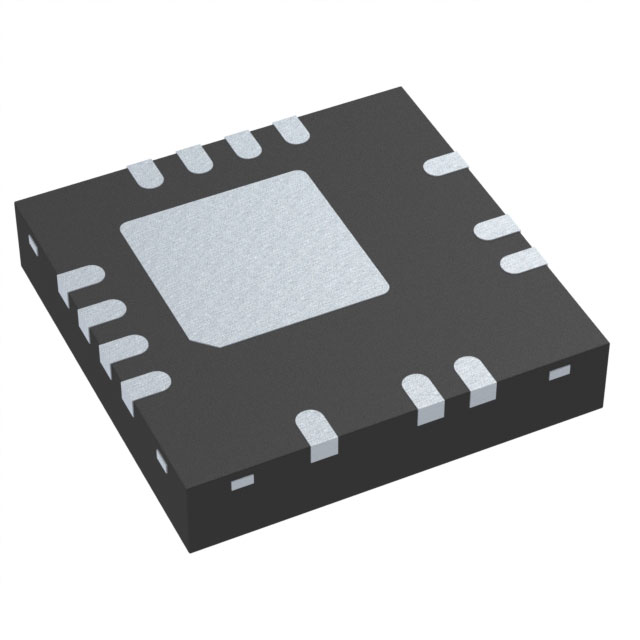

IRS2008MTRPBFXUMA1
IC 200V HB GATE DRIVER 14VQFN
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS2330SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

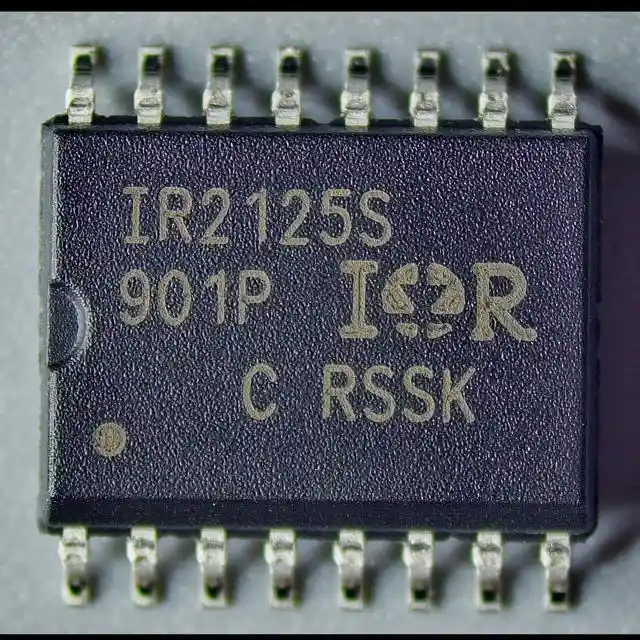

IR2125STRPBF
IC GATE DRVR HIGH-SIDE 16SOIC
|
- | Tape & Reel (TR) | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 0V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A |
|
IRS21084STRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Last Time Buy | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS21814STRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IR21271STRPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|
IR2213PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 12V ~ 20V | 6V, 9.5V | 2A, 2.5A |
|

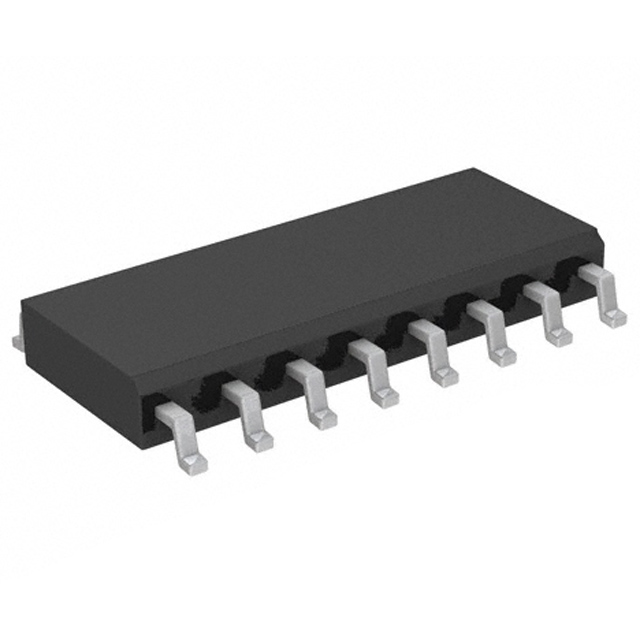

IRS21858STRPBF
IC GATE DRVR HIGH-SIDE 16SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3.5V | 290mA, 600mA |
|

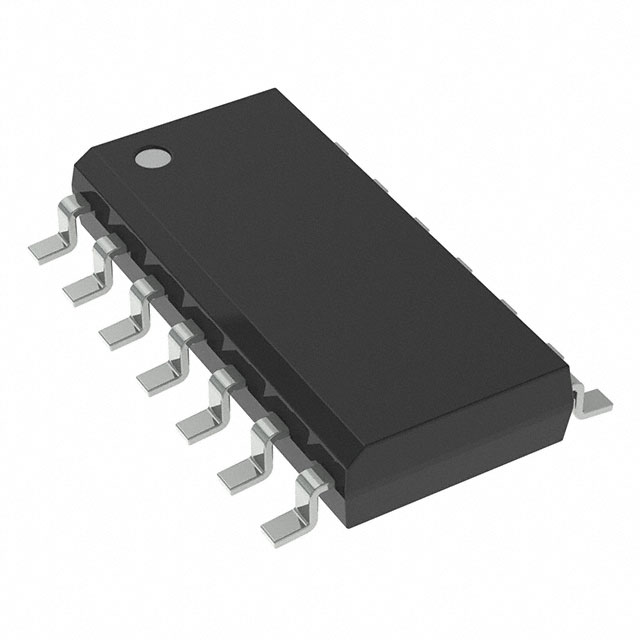

2ED21064S06JXUMA1
IC GATE DRIVER DSO-14
|
- | Tape & Reel (TR) | Active | High-Side and Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 290mA, 700mA |
|
IRS26320C
IC GATE DRVR MOSFET
|
- | Bulk | Obsolete | - | - | - | - | - | - | - |
|
|
IRS26320JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 12V ~ 20V | - | 200mA, 350mA |
