| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2102SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
IR2128STR
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|

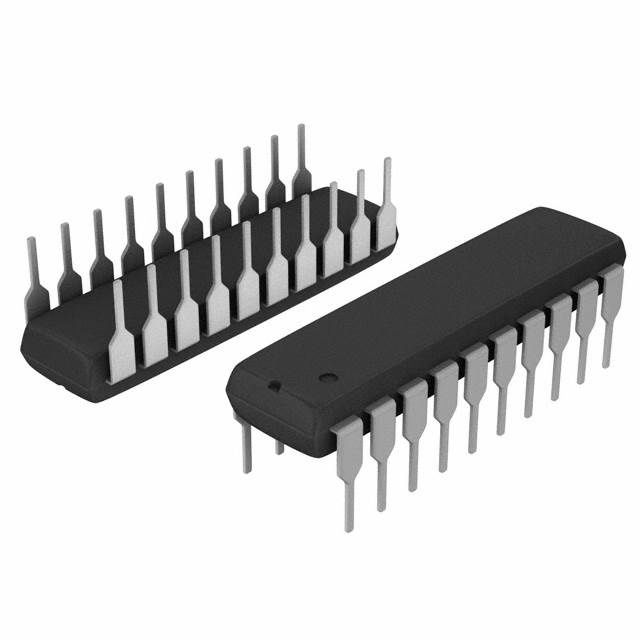

IR1175
IC GATE DRVR LOW-SIDE 20DIP
|
- | Tube | Obsolete | Low-Side | Synchronous | 2 | N-Channel MOSFET | 4V ~ 5.5V | - | 2A, 2A |
|

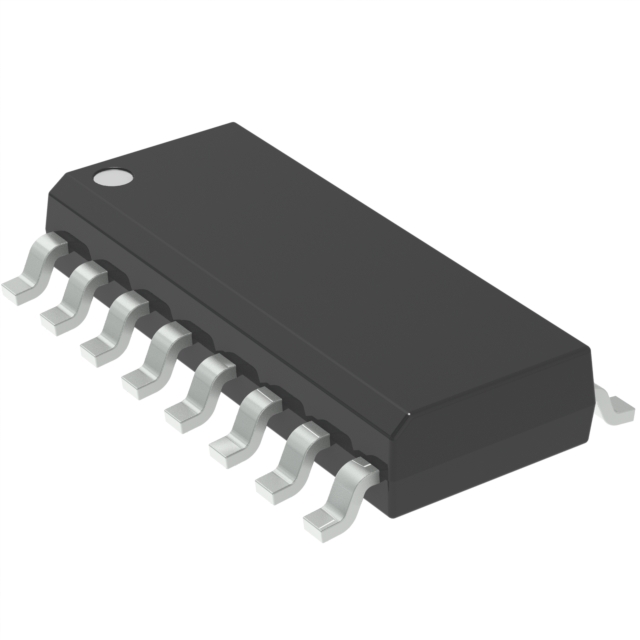

2EDF8275FXUMA1
DRIVER IC
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 4A, 8A |
|
2ED2744S01GXTMA1
160 V HALF BRIDGE SOI GATE DRIVE
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 7V ~ 18V | 0.8V, 2V | 2A, 4A |
|
IR2213SPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 12V ~ 20V | 6V, 9.5V | 2A, 2.5A |
|
IR2181S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
2ED21814S06JXUMA1
IC LEVER SHIFTER DSO-14
|
- | Tape & Reel (TR) | Active | High-Side and Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 2.5A, 2.5A |
|

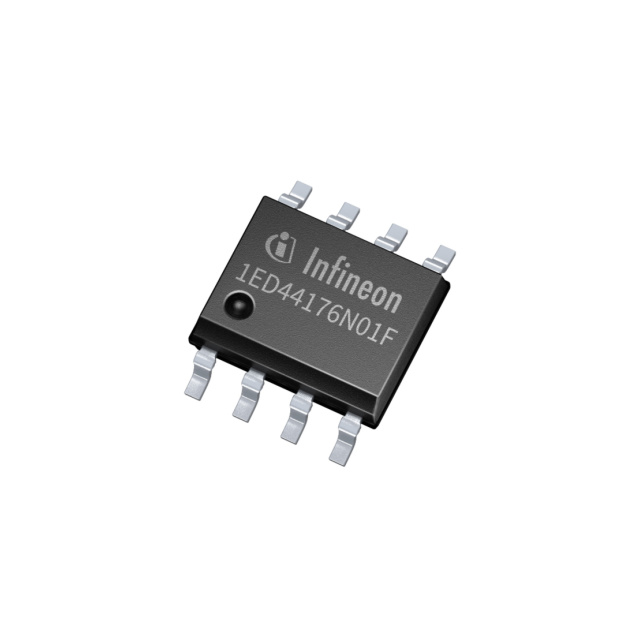

1ED44176N01FXUMA1
IC LOW SIDE GATE DRIVER 25V DSO8
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT | 12.7V ~ 20V | 1.2V, 1.7V | 800mA, 1.75A |
|
IR25607SPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2.5A, 2.5A |
|
IRS4427STRPBF
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.5V | 2.3A, 3.3A |
|

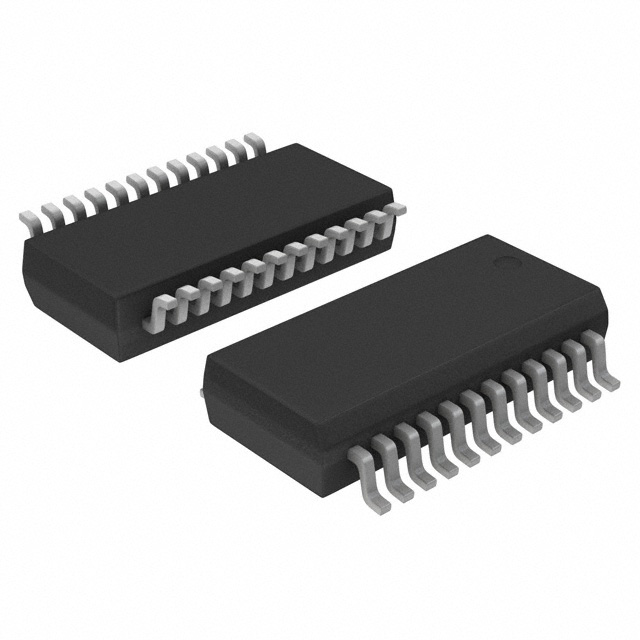

IR2214SSTRPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
