| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS21851STRPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4A, 4A |
|
IR21365SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR21362JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IRS2807DSPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Last Time Buy | High-Side or Low-Side | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
IR21362STR
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|

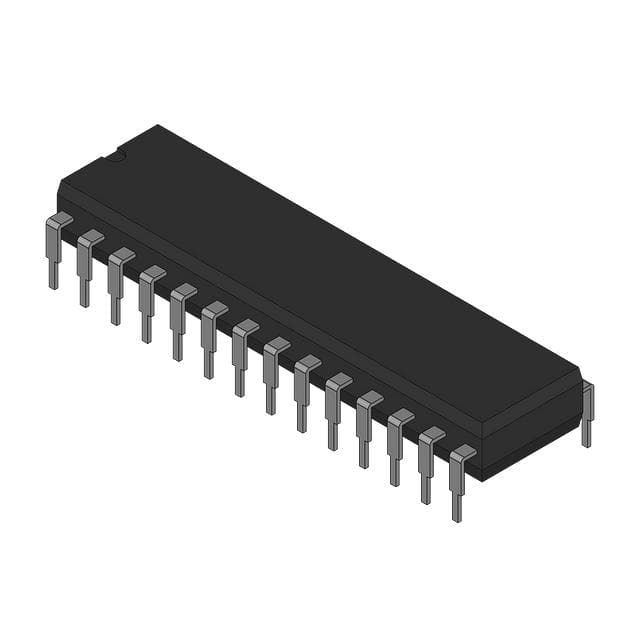

IR2133PBF
IR2133 - GATE DRIVER
|
- | Bulk | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

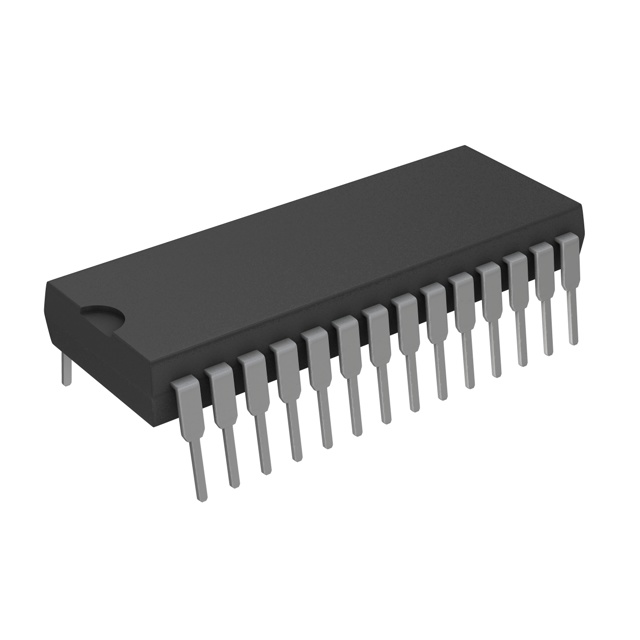

IR21368PBF
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|

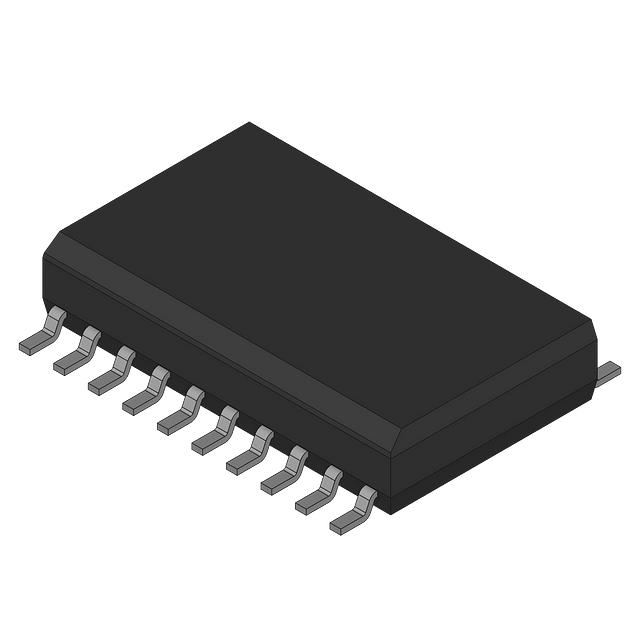

2ED020I06FI
HALF-BRIDGE PERIPHERAL DRIVER
|
- | Bulk | Active | High-Side and Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 14V ~ 18V | 0.8V, 2V | 1A, 2A |
|
DHP0070N10N5AUMA1
INT. POWERSTAGE/DRIVER PG-IQFN-3
|
- | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - |
|
2ED21084S06JXUMA1
IC HALF BRIDGE GATE DRIVER 650V
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 290mA, 700mA |
|
IR2130
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS2336DJPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Bulk | Discontinued at | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
