| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

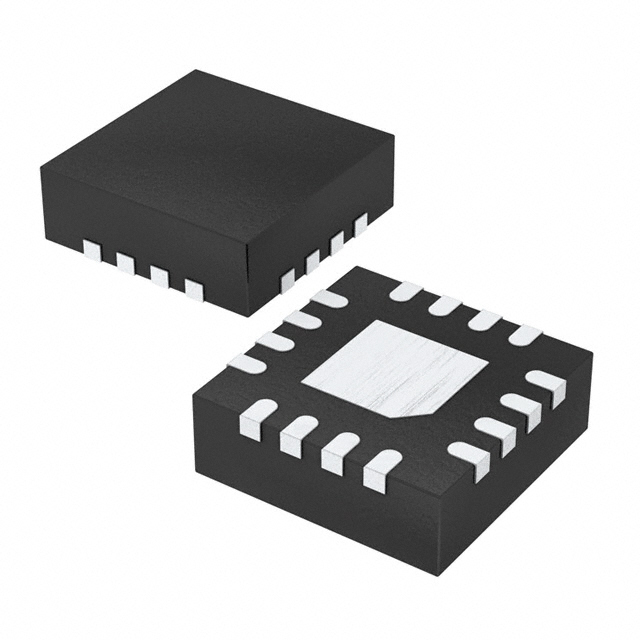

IRS21844MTRPBF
IC GATE DRVR HALF-BRIDGE 16MLPQ
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|

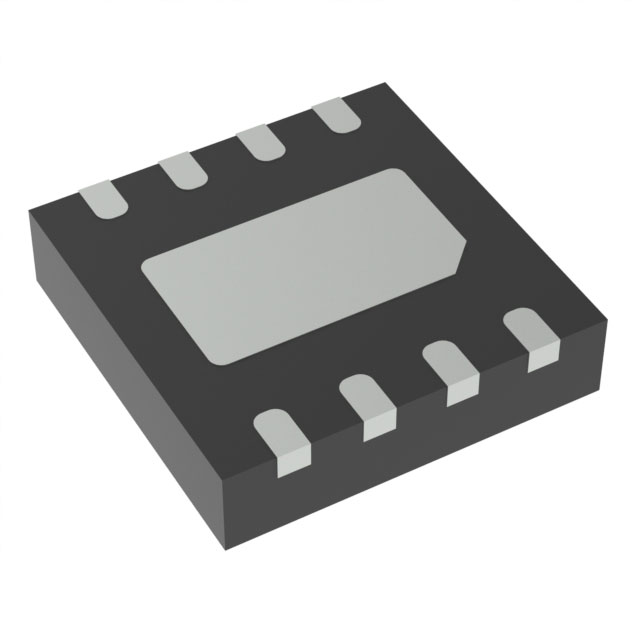

2EDN8524GXTMA1
IC GATE DRVR LOW-SIDE 8WSON
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 1.1V, 1.98V | 5A, 5A |
|
IRS2181SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IRS2304SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.3V | 290mA, 600mA |
|

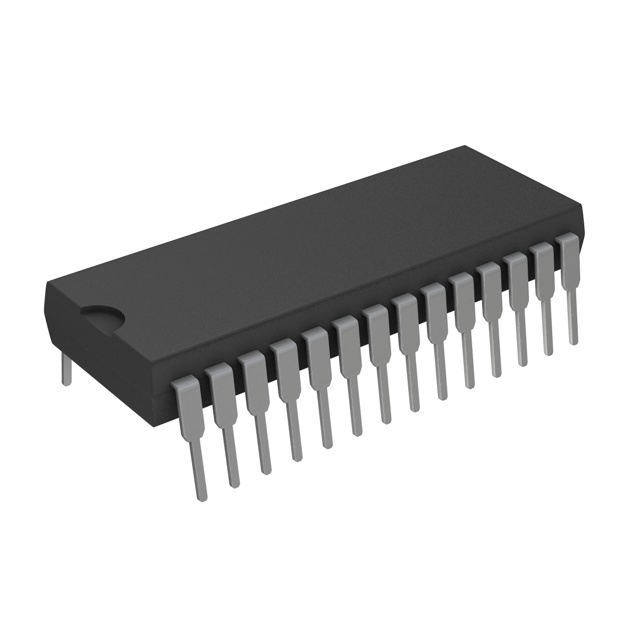

IR2233PBF
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA |
|
2EDF5215GXUMA1
DRIVER IC
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
IR2128PBF
IC GATE DRV HI-SIDE/LO-SIDE 8DIP
|
- | Bulk | Active | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|
IR2133
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS26302DJTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Last Time Buy | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2128
IC GATE DRV HI-SIDE/LO-SIDE 8DIP
|
- | Tube | Obsolete | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|
IR2103S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
IR2213
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 12V ~ 20V | 6V, 9.5V | 2A, 2.5A |
