| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

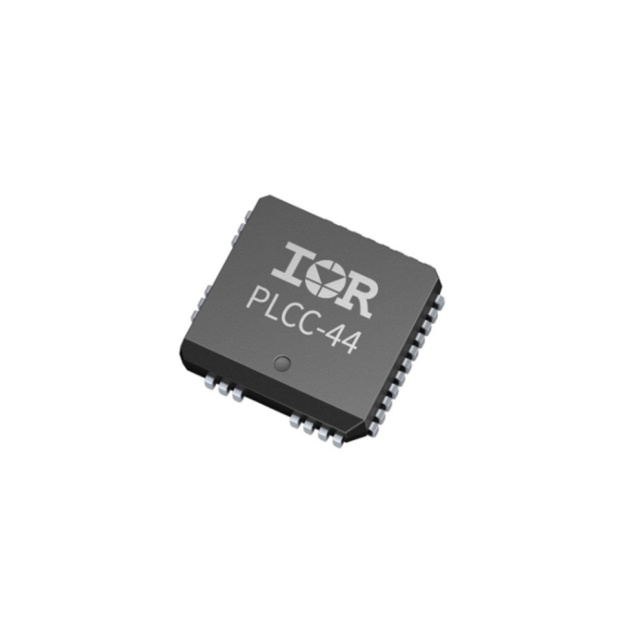

IR2137J
IC GATE DRVR HALF-BRIDGE 68PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 3 | IGBT | 12.5V ~ 20V | - | - |
|
IR2181SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
AUIRS21811STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IRS2106STRPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
1ED3145MC12HXUMA1
ISOLATED DRIVER
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
IR2152STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 125mA, 250mA |
|
IRS2609DSTRPBF-INF
IRS2609D - HALF-BRIDGE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
6EDL04I065PRXUMA1
6EDL04I065PRXUMA1
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT | 10V ~ 25V | 1.1V, 1.7V | 165mA, 375mA |
|
IR2011
IC GATE DRV HI-SIDE/LO-SIDE 8DIP
|
- | Tube | Obsolete | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A |
|
AUIRS2004STR
AUIRS2004 - GATE DRIVER
|
- | Bulk | Obsolete | Half-Bridge | - | 2 | - | 10V ~ 20V | - | - |
|
IRS2186PBF
IC GATE DRV HI-SIDE/LO-SIDE 8DIP
|
- | Tube | Last Time Buy | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4A, 4A |
|
IRS2183PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Bulk | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
