| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

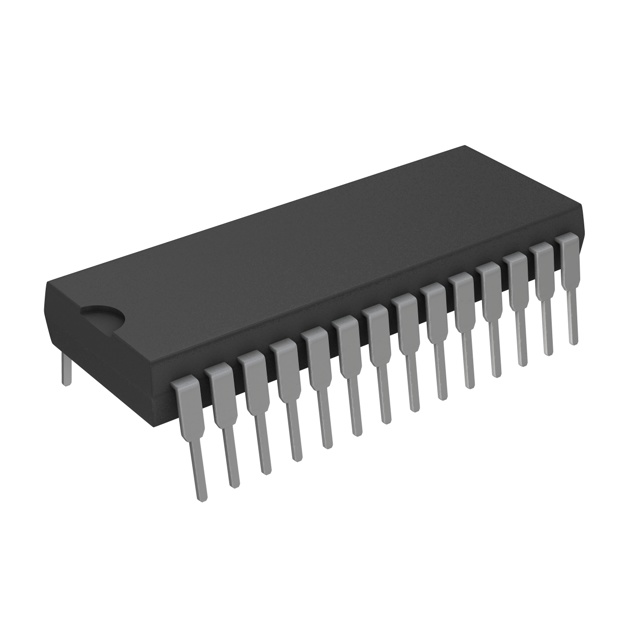

IR2136PBF
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Bulk | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR2111STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 250mA, 500mA |
|
IR3519STRPBF
IC GATE DRVR HALF-BRIDGE 8SON
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6.5V ~ 7.5V | - | 2A, 2A |
|
2ED2388S06FXUMA1
LEVEL SHIFT SOI
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
IR25604SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|

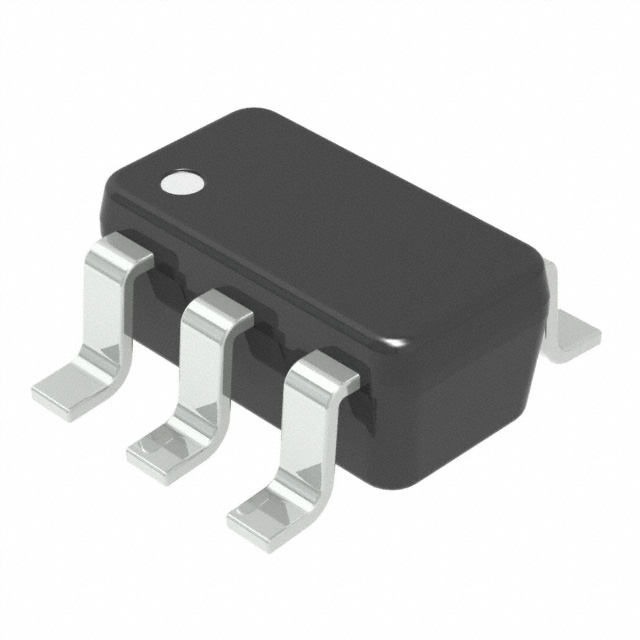

1EDN8550BXTSA1
IC GATE DRVR HIGH-SIDE SOT23-6
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A |
|
IR2101S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
IRS2453DPBF
IC GATE DRVR FULL-BRIDGE 14DIP
|
- | Tube | Obsolete | Full-Bridge | Synchronous | 1 | N-Channel MOSFET | 10V ~ 15.6V | 4.7V, 9.3V | 180mA, 260mA |
|

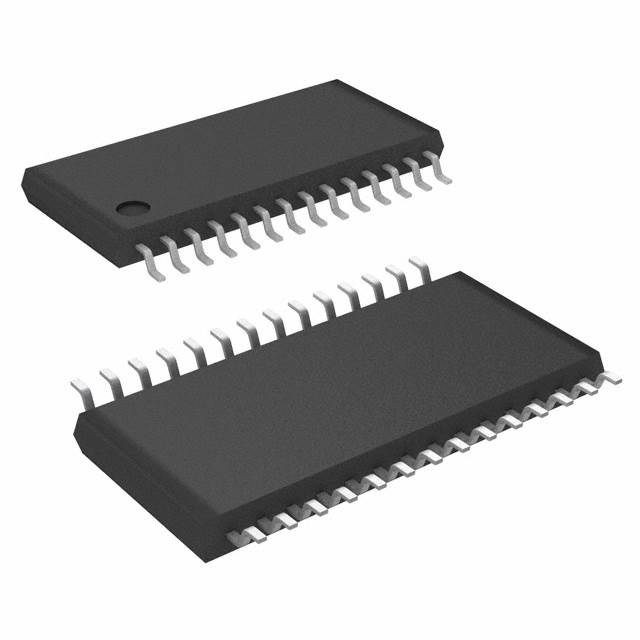

6ED003L02F2XUMA1
IC GATE DRVR HALF-BRIDGE 28TSSOP
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 17.5V | 1.1V, 1.7V | - |
|
IR2104S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|

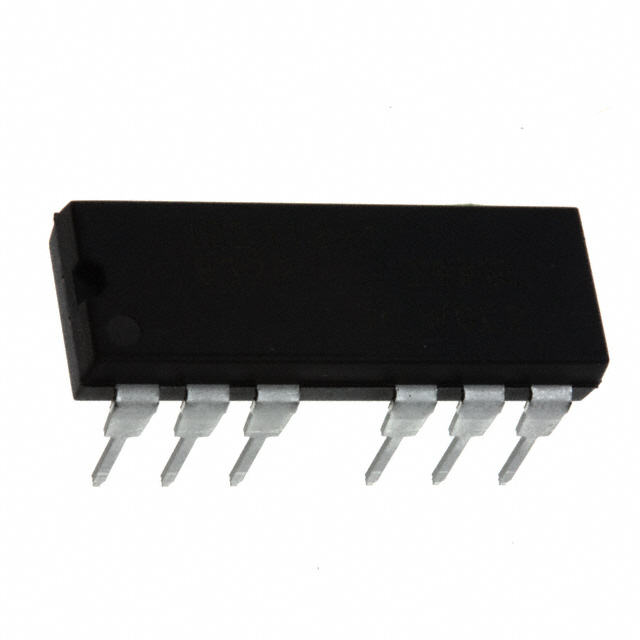

IR2113-1
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|

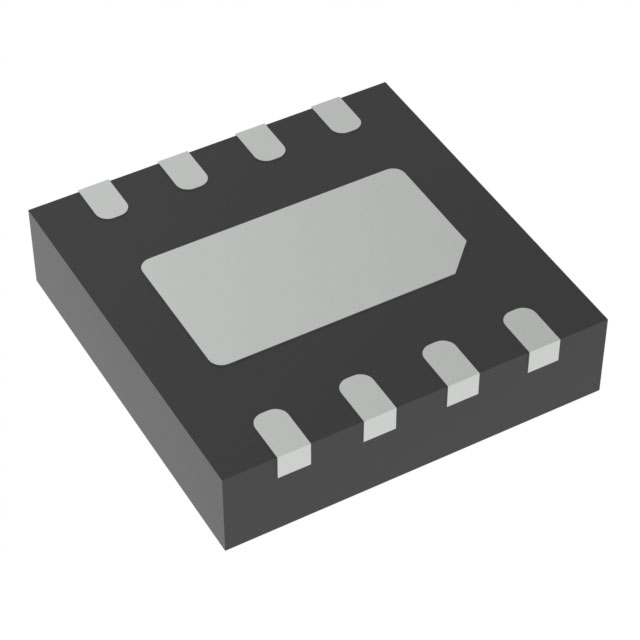

2EDN7524GXTMA1
IC GATE DRVR LOW-SIDE 8WSON
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A |
