| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

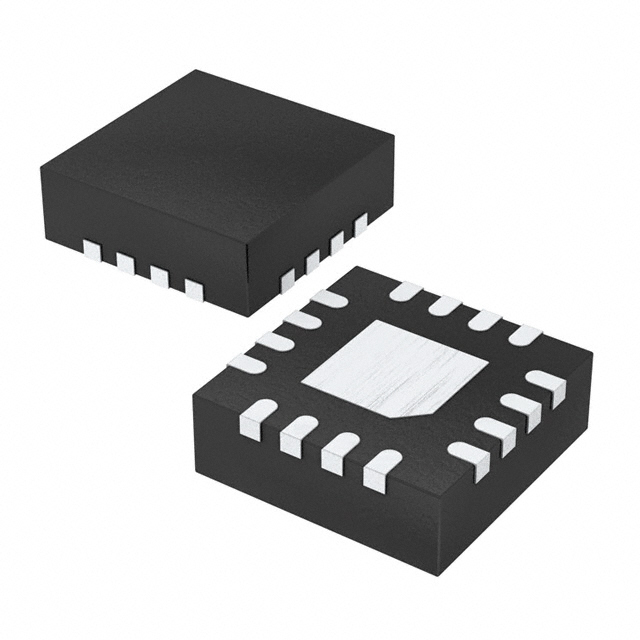

IRS2001MPBF
IC GATE DRVR HALF-BRIDGE 16MLPQ
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2109PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IRS26072DSTRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2301
IC GATE DRV HI-SIDE/LO-SIDE 8DIP
|
- | Tube | Obsolete | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2155PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 250mA, 500mA |
|
IRS2108PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Bulk | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

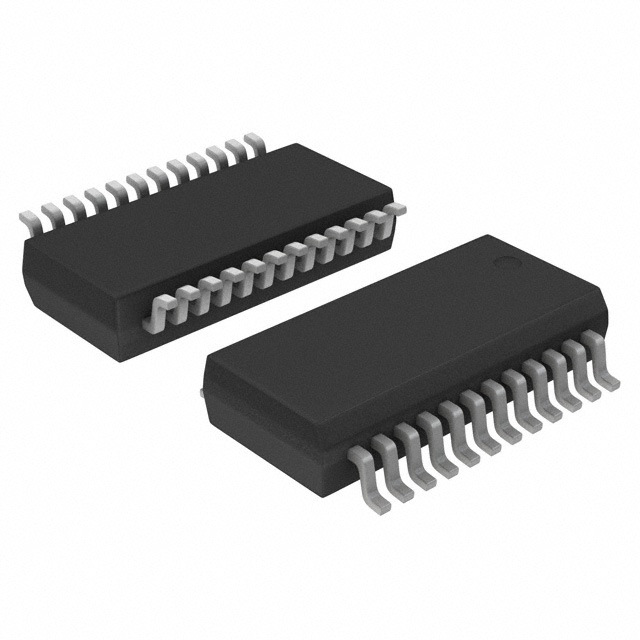

IR21141SSPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
|
1EDN7550BXTSA1
IC GATE DRVR HIGH-SIDE SOT23-6
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A |
|
IR2103SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
2EDL05I06PJXUMA1
IC GATE DRVR HALF-BRIDGE DSO14
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 250mA, 500mA |
|
IRS2112PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Bulk | Discontinued at | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 290mA, 600mA |
|
IR2112-2PBF
IC GATE DRVR HI/LOW SIDE 16DIP
|
- | Tube | Obsolete | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
