| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

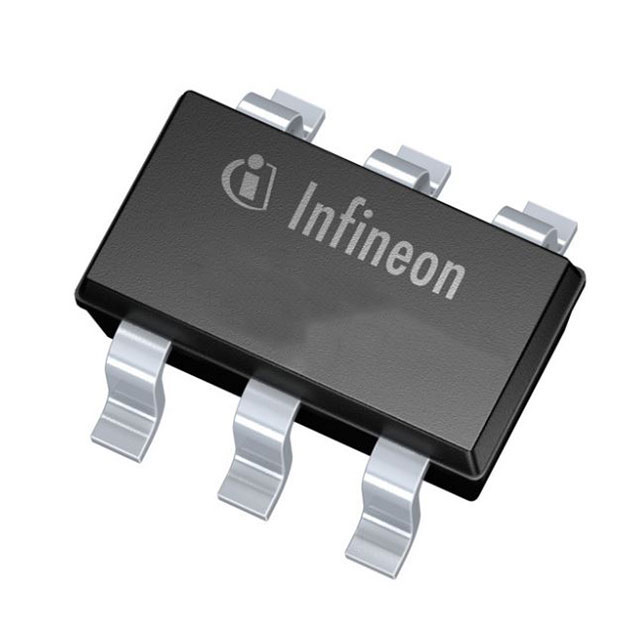

1ED44175N01BXTSA1
IC GATE DRVR LOW-SIDE SOT23-6
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12.7V ~ 20V | 1.2V, 1.9V | 2.6A, 2.6A |
|
2EDL8024GXUMA1
INT. POWERSTAGE/DRIVER
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side and Low-Side | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 4A, 4A |
|
2EDL8124GXUMA1
INT. POWERSTAGE/DRIVER
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side and Low-Side | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 4A, 4A |
|
2EDL05N06PFXUMA1
IC GATE DRVR HALF-BRIDGE 8DSO
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | - |
|
IR2111PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 250mA, 500mA |
|
2EDL23N06PJXUMA1
IC GATE DRVR HALF-BRIDGE 14DSO
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 10V ~ 17.5V | 1.1V, 1.7V | 1.8A, 2.3A |
|

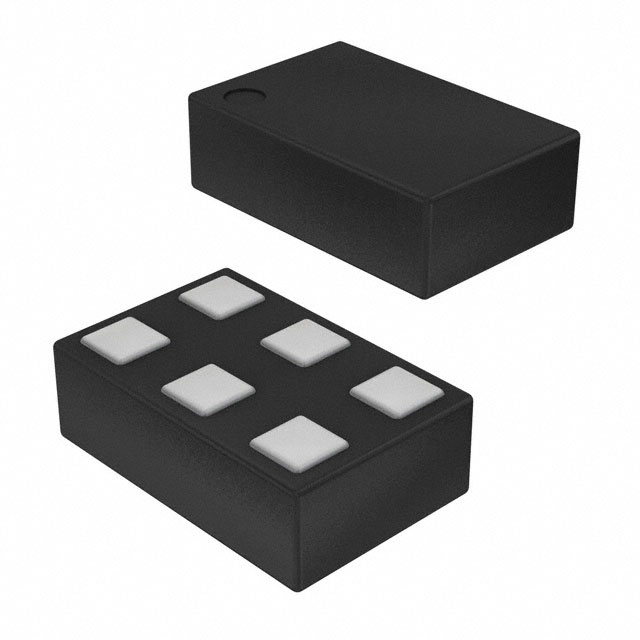

1EDN7550UXTSA1
IC GATE DRVR HALF-BRIDGE TSNP-6
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A |
|

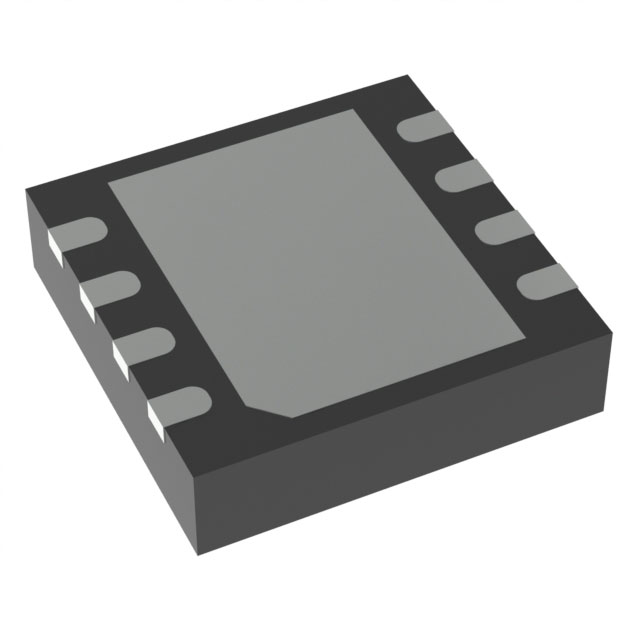

2EDL8023GXUMA1
INT. POWERSTAGE/DRIVER
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side and Low-Side | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 3A, 3A |
|
IR2121PBF
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A |
|
IRS21864STRPBF
IC GATE DRVR HI/LOW SIDE 14SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4A, 4A |
|
IR2112STRPBF
IC GATE DRVR HI/LOW SIDE 16SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|
IR21531PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | - |
