| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21366SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|

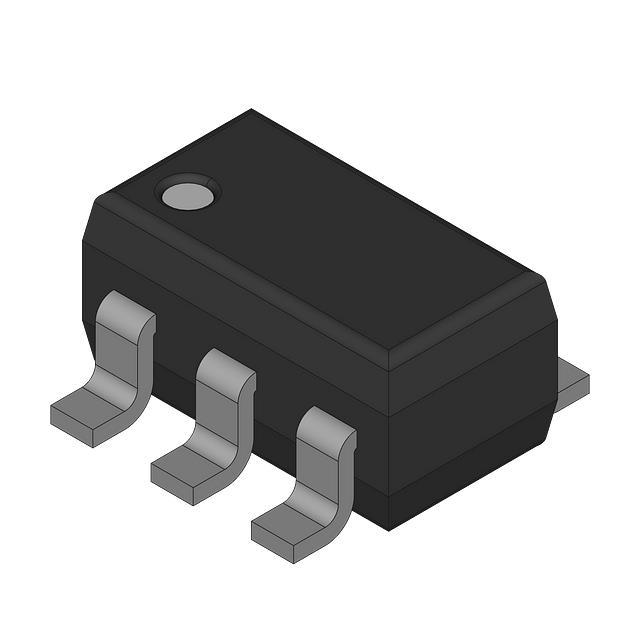

SP001690382
1EDN7550 - GATE DRIVER
|
EiceDriver™ | Bulk | Active | High-Side and Low-Side | Single | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A |
|

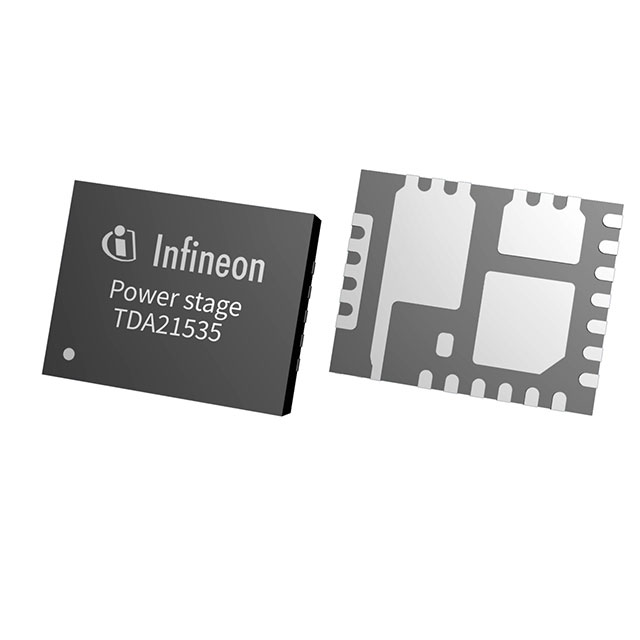

TDA21535AUMA1
IFX POWERSTAGE/DRIVER
|
- | Tape & Reel (TR) | Active | Half-Bridge | Single | 2 | N-Channel MOSFET | 4.25V ~ 16V | 2V, 0.8V | 20A, 20A |
|

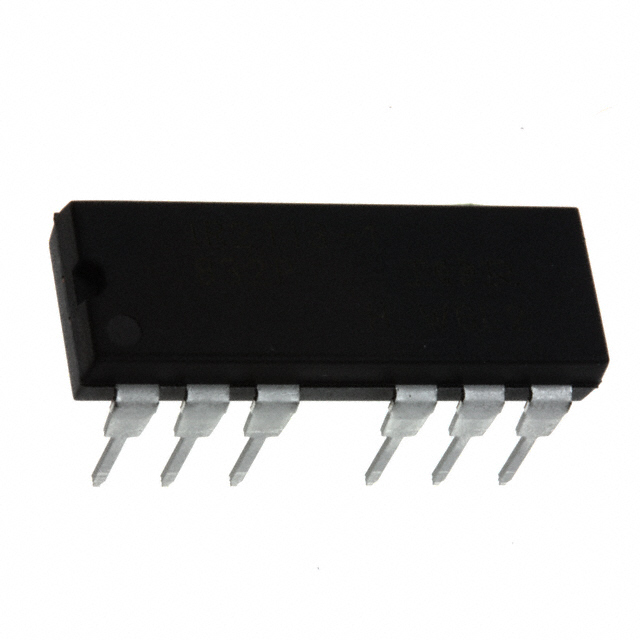

IR2113-1PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|
IR2184SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|

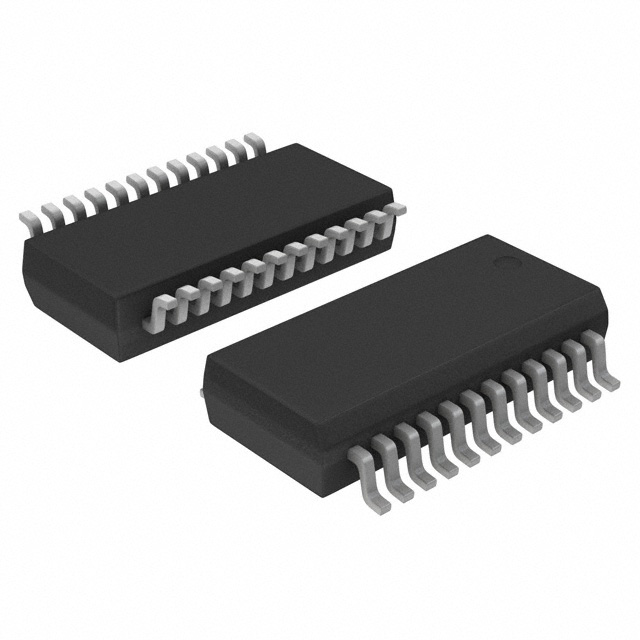

IR2214SSPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
|
IRS2111SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 290mA, 600mA |
|
IRS2301STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IRS21281STRPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2118SPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tube | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|

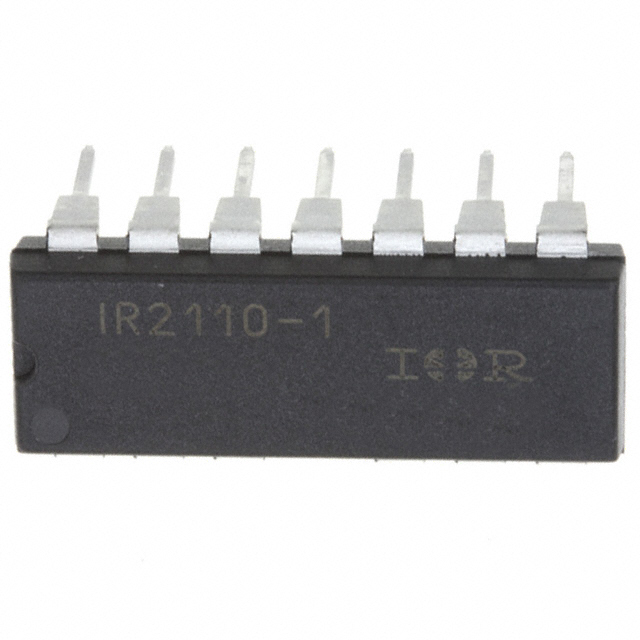

IR2110-1PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|
IRS2330JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
