| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AHC14PW
IC INVERTER 6CH 1-INP 14TSSOP
|
74AHC | Bulk | Discontinued at | Inverter | 1 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V |
|

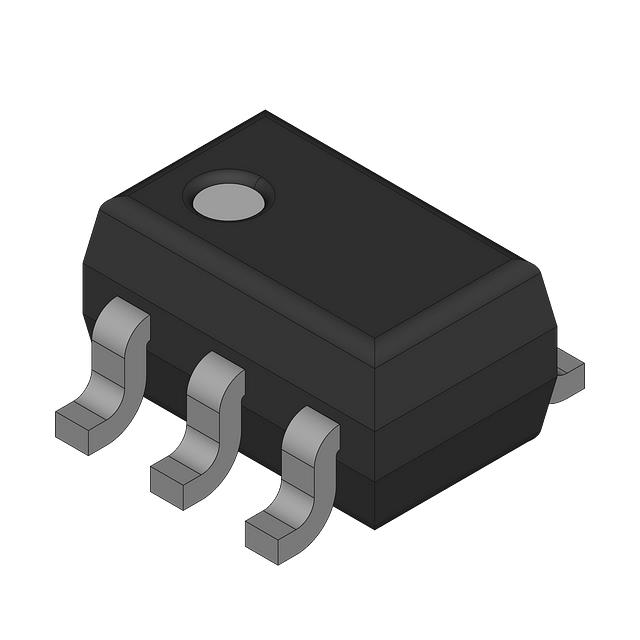

SN74LVC1G08DCKRE4
IC GATE AND 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|
CDC203DWRG4
IC INVERTER 6CH 1-INP 20SOIC
|
- | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 3V ~ 3.6V | 12mA, 12mA | 0.9V ~ 1.1V | 2.1V ~ 2.5V |
|
JM38510/07001BDA
SN54S00 QUADRUPLE 2-INPUT POSITI
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LS04DG4
IC INVERTER 6CH 1-INP 14SOIC
|
74LS | Bulk | Discontinued at | Inverter | 1 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|

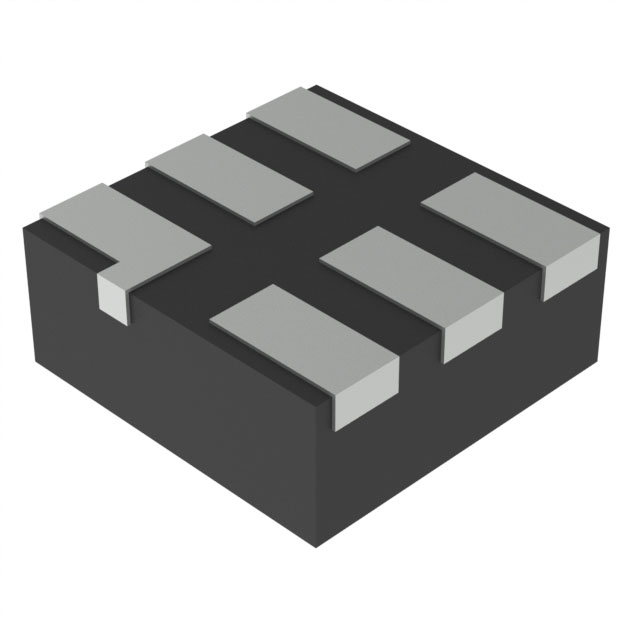

SN74LVC1G04DSFR
IC INVERTER 1CH 1-INP 6SON
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
5962-9754101QCA
SN54LS37 QUADRUPLE 2-INPUT POSIT
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
74S86DC
QUAD 2 INPUT XOR GATE
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
SN54LS86AJ
54LS86A QUADRUPLE 2-INPUT EXCLUS
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74HCT32DBR
IC GATE OR 4CH 2-INP 14SSOP
|
74HCT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74AHC1G04DRLRG4
IC INVERTER 1CH 1-INP SOT5
|
74AHC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
|
SN74LS20NE4
2-CH, 4-INPUT, 4.75-V TO 5.25-V
|
74LS | Tube | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
