| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74HCT04PWR
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74ACT08NSR
IC GATE AND 4CH 2-INP 14SOP
|
74ACT | Tape & Reel (TR) | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|

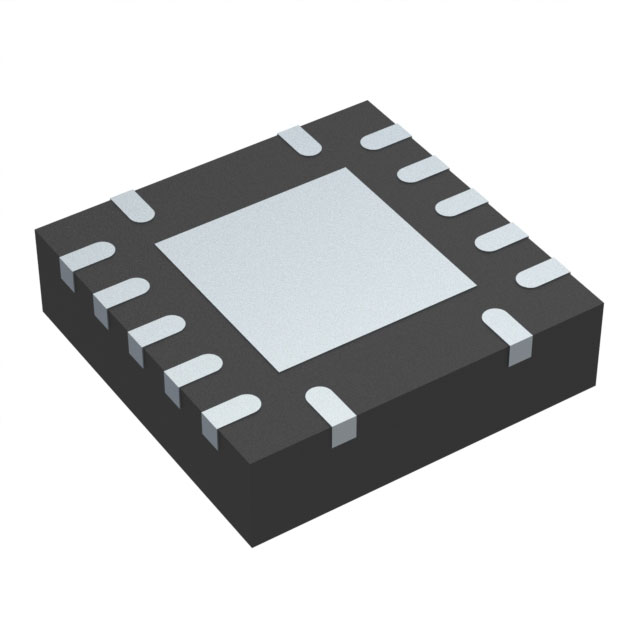

SN74LV08ARGYRG4
IC GATE AND 4CH 2-INP 14VQFN
|
74LV | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
SN74AHC32D
IC GATE OR 4CH 2-INP 14SOIC
|
74AHC | Tube | Discontinued at | OR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
CD74ACT86M96G4
IC GATE XOR 4CH 2-INP 14SOIC
|
74ACT | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74HCT14PWTG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
CD74HCT86EG4
IC GATE XOR 4CH 2-INP 14DIP
|
74HCT | Tube | Discontinued at | XOR (Exclusive OR) | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
|
SN74AHC04PWR
IC INVERTER 6CH 1-INP 14TSSOP
|
74AHC | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
|
SN74LVC08ADR
IC GATE AND 4CH 2-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

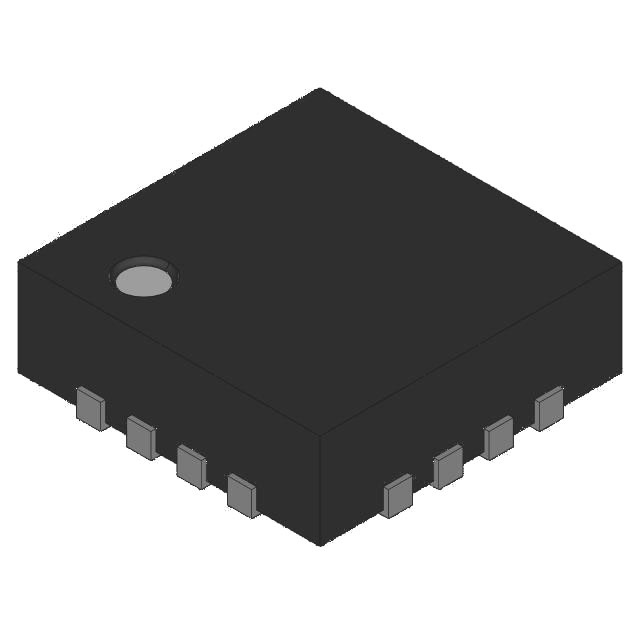

JM38510/65101SDA
NOR GATE, HC/UH SERIES, 4 FUNC,
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SNJ54LS37J
IC GATE NAND 4CH 2-INP 14CDIP
|
54LS | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 1.2mA, 12mA | 0.7V | 2V |
|
|
SNJ54LS04FK
IC INVERTER 6CH 6-INP 20LCCC
|
54LS | Tube | Active | Inverter | 6 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
