| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD74HC4002M96
IC GATE NOR 2CH 4-INP 14SOIC
|
74HC | Tape & Reel (TR) | Active | NOR Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC21D
IC GATE AND 2CH 4-INP 14SOIC
|
74HC | Tube | Discontinued at | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

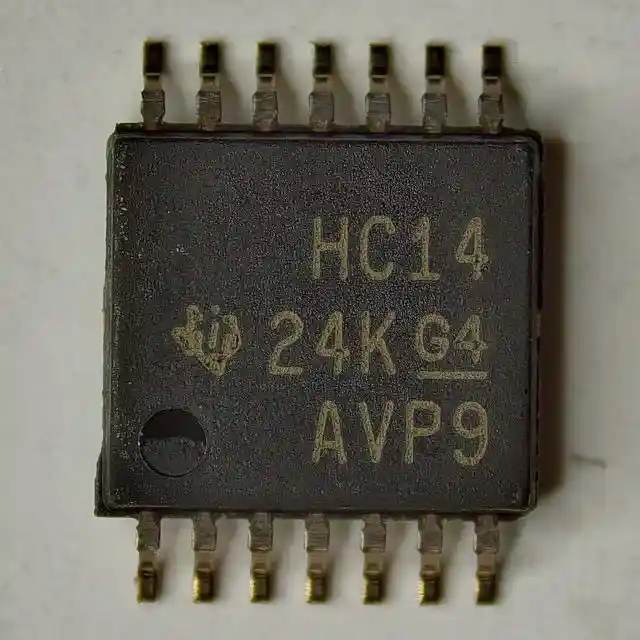

SN74HC14PWR
IC INVERTER 6CH 1-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74HC32PWT
IC GATE OR 4CH 2-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD74HC4002E
IC GATE NOR 2CH 4-INP 14DIP
|
74HC | Tube | Active | NOR Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74HC32DR
IC GATE OR 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC00PWR
IC GATE NAND 4CH 2-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC10N
IC GATE NAND 3CH 3-INP 14DIP
|
74HC | Tube | Active | NAND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74HC08N
IC GATE AND 4CH 2-INP 14DIP
|
74HC | Tube | Active | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74F260NSRG4
IC GATE NOR 2CH 5-INP 14SOP
|
74F | Tape & Reel (TR) | Obsolete | NOR Gate | 5 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
|
CD74HC10M
IC GATE NAND 3CH 3-INP 14SOIC
|
74HC | Tube | Discontinued at | NAND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74HC132NS
IC GATE NAND SCHMIT 4CH 2IN 14SO
|
74HC | Tube | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.998V ~ 5.8V |
