| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4077BPWR
IC GATE XNOR 4CH 2-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Obsolete | XNOR (Exclusive NOR) | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74HCT04NE4
6-CH, 4.5-V TO 5.5-V INVERTERS W
|
74HCT | Tube | Active | Inverter | 6 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
|
JM38510/30001SDA
IC GATE NAND 4CH 2-INP 14CFP
|
54LS | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
CD4082BEG4
IC GATE AND 2CH 4-INP 14DIP
|
4000B | Tube | Discontinued at | AND Gate | 4 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
JM38510/05053BCA
CMOS TRIPLE 3-INPUT NAND GATE 14
|
4000B | Tube | Active | NAND Gate | 3 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|

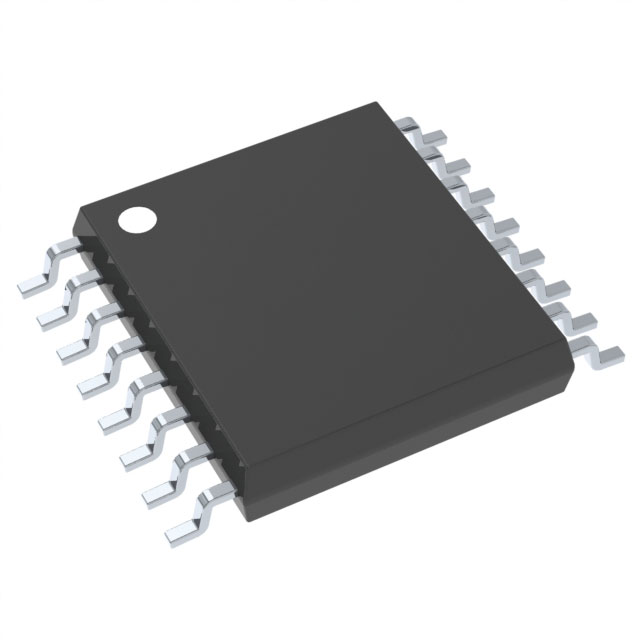

CD4009UBPWE4
IC INVERTER 6CH 1-INP 16TSSOP
|
4000B | Tube | Obsolete | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
CD4011UBPW
IC GATE NAND 4CH 2-INP 14TSSOP
|
4000B | Tube | Obsolete | NAND Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
CD4001BPWRG4
IC GATE NOR 4CH 2-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4023BNSR
IC GATE NAND 3CH 3-INP 14SOP
|
4000B | Tape & Reel (TR) | Active | NAND Gate | 3 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4072BMT
IC GATE OR 2CH 4-INP 14SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | OR Gate | 4 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
CD40106BF3A
MILITARY 6-CH, 3-V TO 18-V INVER
|
4000B | Tube | Active | Inverter | 6 | Schmitt Trigger | 3V ~ 18V | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V |
|
CD4009UBPWR
IC INVERTER 6CH 1-INP 16TSSOP
|
4000B | Tape & Reel (TR) | Active | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
