| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

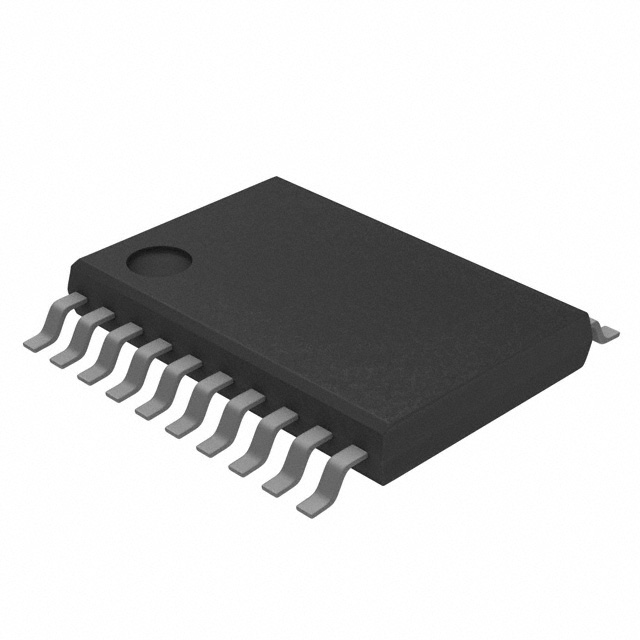

74ACT11004PW
IC INVERTER 6CH 1-INP 20TSSOP
|
74ACT | Tube | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74HC21ANS
PROTOTYPE
|
74HC | Tube | Active | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
SN74HC10NE4
3-CH, 3-INPUT, 2-V TO 6-V NAND G
|
74HC | Tube | Active | NAND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD74HC4075MG4
IC GATE OR 3CH 3-INP 14SOIC
|
74HC | Tube | Discontinued at | OR Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD74HC11EG4
IC GATE AND 3CH 3-INP 14DIP
|
74HC | Tube | Discontinued at | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC7002PWRE4
IC GATE NOR 4CH 2-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74ACT04PWRG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74ACT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74HC86PWT
IC GATE XOR 4CH 2-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74HC7002NSRG4
IC GATE NOR SCHMIT 4CH 2IN 14SOP
|
74HC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
SN74LVC2G08DCUR
IC GATE AND 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
CD74HC132EE4
4-CH, 2-INPUT, 2-V TO 6-V NAND G
|
74HC | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 1V ~ 3V | 1.5V ~ 4.2V |
|

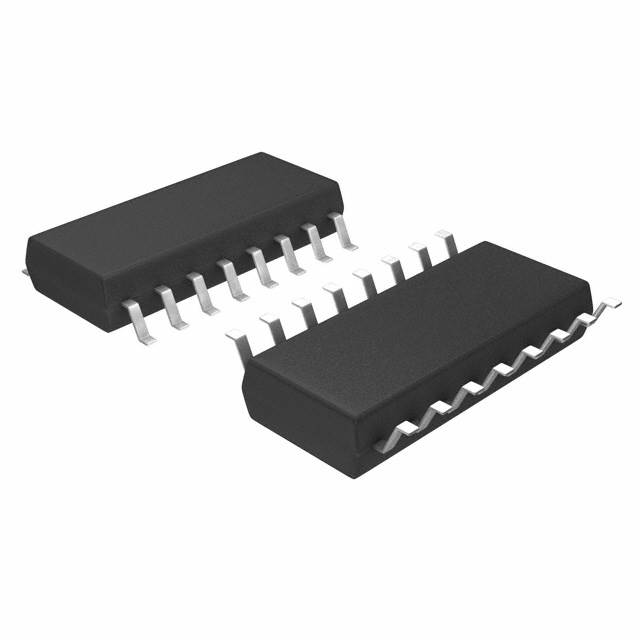

74ACT11008NSR
IC GATE AND 4CH 2-INP 16SO
|
74ACT | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
