| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD40107BE
IC GATE NAND OD 2CH 2-INP 8DIP
|
4000B | Tube | Active | NAND Gate | 2 | Open Drain | 3V ~ 18V | -, 68mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4001UBM
IC GATE NOR 4CH 2-INP 14SOIC
|
4000B | Tube | Active | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
CD4070BM96
IC GATE XOR 4CH 2-INP 14SOIC
|
4000B | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74HCT14DBR
IC INV SCHMITT 6CH 1-IN 14SSOP
|
74HCT | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
CD4001BMT
IC GATE NOR 4CH 2-INP 14SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4011UBNSR
IC GATE NAND 4CH 2-INP 14SOP
|
4000B | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
SN74HCT14PWRG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
CD4081BME4
IC GATE AND 4CH 2-INP 14SOIC
|
4000B | Tube | Discontinued at | AND Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74HCT04DBR
IC INVERTER 6CH 1-INP 14SSOP
|
74HCT | Bulk | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
CD4069UBNSR
IC INVERTER 6CH 1-INP 14SOP
|
4000B | Tape & Reel (TR) | Active | Inverter | 1 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|

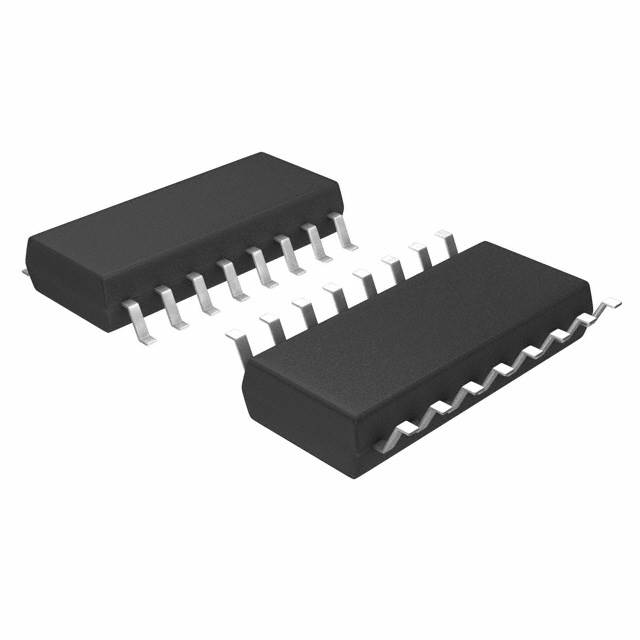

CD4009UBNSRE4
IC INVERTER 6CH 1-INP 16SO
|
4000B | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
CD4030BEG4
IC GATE XOR 4CH 2-INP 14DIP
|
4000B | Tube | Discontinued at | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
