| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G06DCKJ
IC BUFFER INVERT 5.5V SC70-5
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
8404001CA
MILITARY SINGLE 8-INPUT, 2-V TO
|
54HC | Tube | Active | NAND Gate | 8 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC2G32DCUTG4
IC GATE OR 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | OR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC1G14DCKTE4
IC INVERT SCHMITT 1CH 1IN SC70
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74AS1004AN
IC INVERTER 6CH 1-INP 14DIP
|
74AS | Tube | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
|
SN74LVC1G02DCKJ
IC GATE NOR 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74S10NSR
IC GATE NAND 3CH 3-INP 14SOP
|
74S | Tape & Reel (TR) | Obsolete | NAND Gate | 3 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|
SN74LVC2G06DCKRG4
IC INVERTER OD 2CH 2-INP SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
74LVC1G125DBVTG4
IC BUF NON-INVERT 5.5V SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | - | - | - | - | - | - | - |
|
SN74LVC2G08DCUTE4
IC GATE AND 2CH 2-INP 8VSSOP
|
74LVC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HC21QPWRG4Q1
IC GATE AND 2CH 4-INP 14TSSOP
|
Automotive, AEC-Q100, 74HC | Tape & Reel (TR) | Active | AND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|

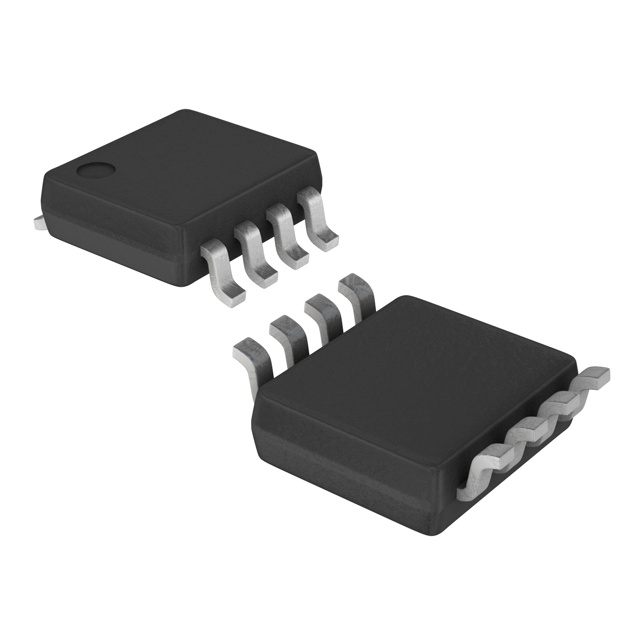

SN74LVC3G04DCU6
SN74LVC3G04
|
74LVC | Bulk | Obsolete | - | - | - | - | - | - | - |
