| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G38YEPR
IC GATE NAND OD 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC2G32DCU3
PROTOTYPE
|
74LVC | Bulk | Active | OR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74HCS4075PWR
IC GATE OR 3CH 3IN 14TSSOP
|
74HCS | Tape & Reel (TR) | Active | OR Gate | 3 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|

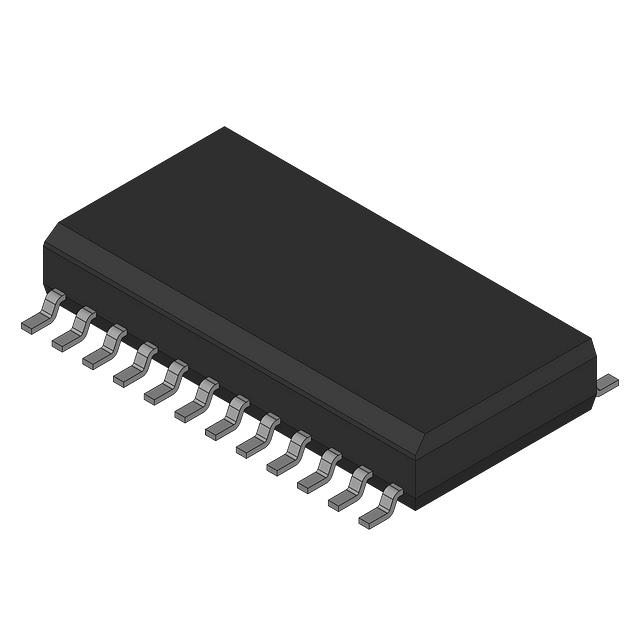

74AC11800DW
AND/NAND GATE, AC SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LV08ADRE4
IC GATE AND 4CH 2-INP 14SOIC
|
74LV | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
|
CD74AC20M
IC GATE NAND 2CH 4-INP 14SOIC
|
74AC | Tube | Active | NAND Gate | 4 | - | 1.5V ~ 5.5V | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V |
|
SN74LVC1G14DRY2
IC INVERT SCHMITT 1CH 1-INP 6SON
|
74LVC | Bulk | Obsolete | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
|
54LS27LM
NOR GATE, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC00AQDRQ1
IC GATE NAND 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
74AC11810D
XNOR GATE, CMOS, PDSO16
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC14AQPWRG4Q1
IC INVERTER 6CH 1-INP 14TSSOP
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 3.6V | 24mA, 24mA | 0.4V ~ 0.8V | 2V |
|
SN74LV04ATPWREP
IC INVERTER 6CH 1-INP 14TSSOP
|
74LV | Tape & Reel (TR) | Active | Inverter | 1 | - | 2V ~ 5.5V | 12mA, 12mA | 0.5V | 1.5V |
