| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G04DSF2
IC INVERTER 1CH 1-INP 6SON
|
74AUP | Tape & Reel (TR) | Active | Inverter | 1 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
M38510/37004BCA
IC GATE NAND 1CH 8-INP 14CDIP
|
54ALS | Tube | Active | NAND Gate | 8 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
SN74LVC1G86DRLRG4
IC GATE XOR 1CH 2-INP SOT5
|
74LVC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC32AMPWREP
IC GATE OR 4CH 2-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC1G04YEAR
IC INVERTER 1CH 1-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
SN74AS30D
IC GATE NAND 1CH 8-INP 14SOIC
|
74AS | Bulk | Active | NAND Gate | 8 | - | 4.5V ~ 5.5V | 2mA, 20mA | 0.8V | 2V |
|

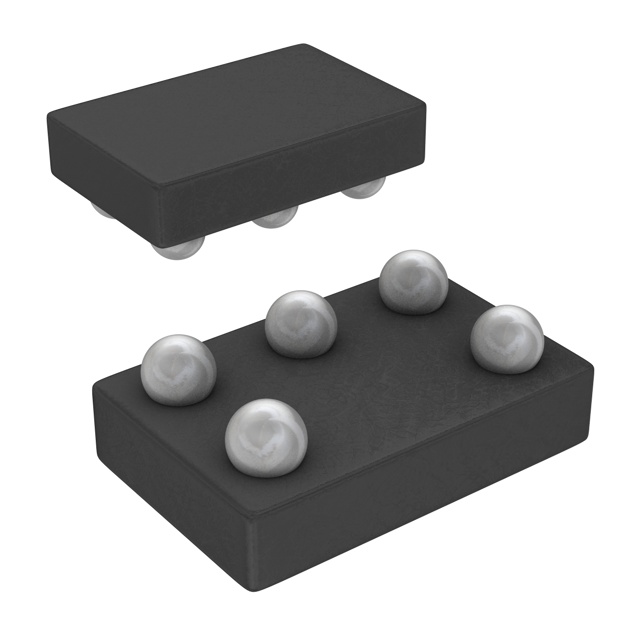

SN74AUP1G00YEPR
IC GATE NAND 1CH 2-INP 5DSBGA
|
74AUP | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
|
M38510/37301B2A
IC GATE NOR 4CH 2-INP 20LCCC
|
54ALS | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
|
SN74LVC1G125YEPR
IC BUF NON-INVERT 5.5V 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - |
|
SN74AS1008AD
IC GATE AND 4CH 2-INP 14SOIC
|
74AS | Tube | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
SN74AUP3G06DQER
IC INVERTER OD 3CH 3-INP 8X2SON
|
74AUP | Tape & Reel (TR) | Active | Inverter | 3 | Open Drain | 0.8V ~ 3.6V | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
74LVC2GU04DCKTG4
IC INVERTER 2CH 2-INP SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
