| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUP1G57DBVT
IC GATE MULT-FUNC CONFIG SOT23-6
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74AUP1G57YEPR
IC GATE MULT-FUNC CONFIG 6-DSBGA
|
74AUP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G57DRYR
IC CONFIG MULTI-FUNC GATE 6SON
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
M38510/00501BCA
DUAL 2-WIDE 2-INPUT AND-OR-INVER
|
- | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V |
|
100307W-QMLV
100307 - XOR/XNOR GATE, 100K SER
|
- | Bulk | Active | XOR/XNOR Gate | - | - | - | - | - | -4.2V ~ -5.7V |
|
SN74LV8151PWRE4
IC BUFFER INVERTER 10BIT 24TSSOP
|
74LV | Tape & Reel (TR) | Discontinued at | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V |
|
SN74LV8151DWR
IC BUFFER INVERTER 10BIT 24SOIC
|
74LV | Tape & Reel (TR) | Active | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V |
|
|
SN700346N
HEX INVERTER
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
CD4572UBM96G4
IC CMOS HEX GATE 4INV 16-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|

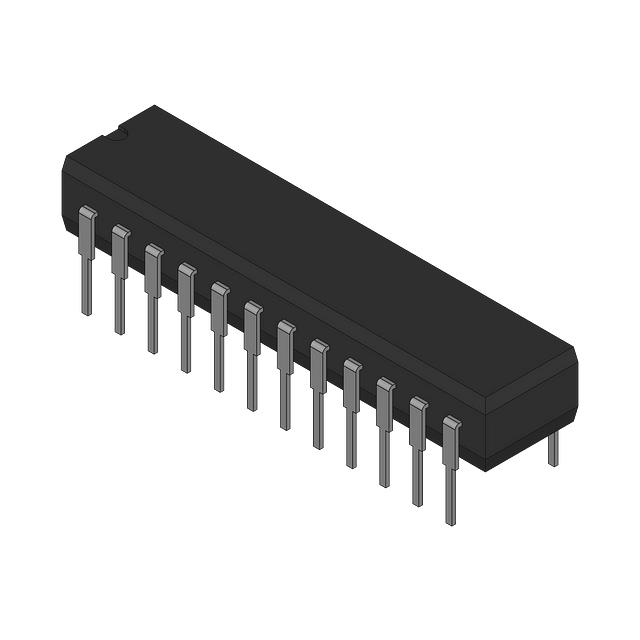

100302W-QMLV
100302 - OR/NOR GATE, 100K SERIE
|
- | Bulk | Active | NOR/OR Gate | - | 10 Input (2, 2, 2, 2, 2) | - | - | - | -4.2V ~ -5.7V |
|
SN74LVC1G97QDBVRQ1
IC MULTI-FUNC GTE CONFIG SOT23-6
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
74F64PC
IC GATE AND/OR 4-2-3-2INP 14-DIP
|
74F | Tube | Obsolete | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Differential | 1mA, 20mA | 4.5V ~ 5.5V |
