| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SY100EL01ZG
IC GATE OR/NOR 4-INPUT 8-SOIC
|
100EL | Tube | Obsolete | NOR/OR Gate | 1 | 4 | No | Differential | - | 4.2V ~ 5.5V |
|
SY100S317JZ-TR

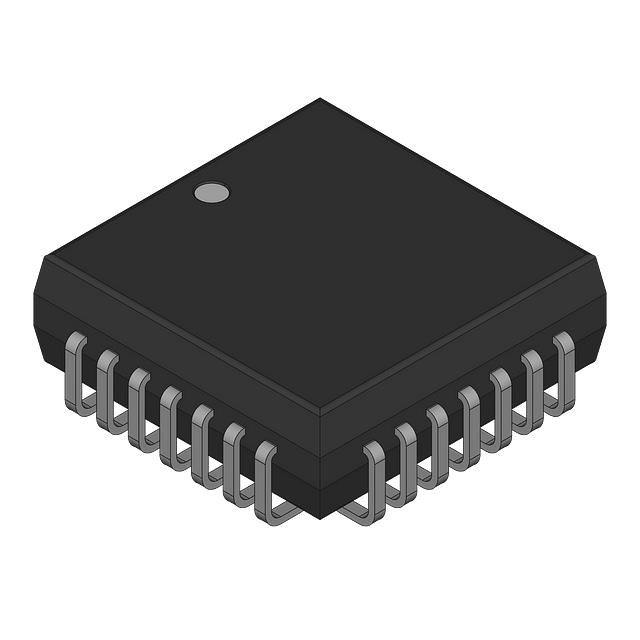

IC GATE OA/OAI TRIPLE 28-PLCC
|
100S | Tape & Reel (TR) | Obsolete | AND/OR Gate | 3 | 12 Input (4, 4, 4) | No | Differential | - | 4.2V ~ 5.5V |
|
SY55851AUKI
IC GATE UNIV 3GHZ 50 OHM 10MSOP
|
SY55 | Tube | Discontinued at | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V |
|
|
SY100S301JC-TR
IC GATE OR/NOR TRPL 5-IN 28-PLCC
|
100S | Tape & Reel (TR) | Discontinued at | NOR/OR Gate | 3 | 15 Input (5, 5, 5) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY10EL04ZC-TR
IC GATE AND/NAND 2-INPUT 8-SOIC
|
10EL | Tape & Reel (TR) | Discontinued at | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.75V ~ 5.5V |
|
|
SY100EL04ZI-TR
IC GATE AND/NAND 2-INPUT 8-SOIC
|
100EL | Tape & Reel (TR) | Discontinued at | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100E404JC
IC GATE AND/NAND QUAD 28-PLCC
|
100E | Bulk | Discontinued at | AND/NAND Gate | 4 | 8 Input (2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY10E107JC-TR
IC GATE XOR/XNOR QUINT 28-PLCC
|
10E | Tape & Reel (TR) | Discontinued at | XOR/XNOR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100E104JI
IC GATE AND/NAND QUINT 28-PLCC
|
100E | Bulk | Discontinued at | AND/NAND Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
SY58051UMI
IC GATE CML UNIV I/O TERM 16MLF
|
SY55 | Tray | Obsolete | Configurable Multiple Function | 1 | 2 | No | Differential | - | 2.3V ~ 3.6V |
|
|
SY10E404JC-TR
IC GATE AND/NAND QUAD 28-PLCC
|
10E | Tape & Reel (TR) | Discontinued at | AND/NAND Gate | 4 | 8 Input (2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY10E107JZ-TR
IC GATE XOR/XNOR QUINT 28-PLCC
|
10E | Tape & Reel (TR) | Obsolete | XOR/XNOR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
