| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

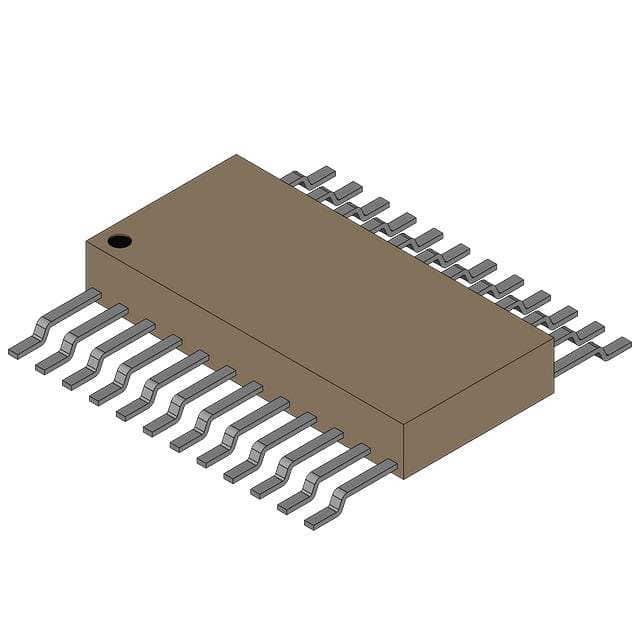

SY100S307FC
IC GATE OR/NOR QUINT 24-CERPACK
|
100S | Bulk | Discontinued at | NOR/OR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|

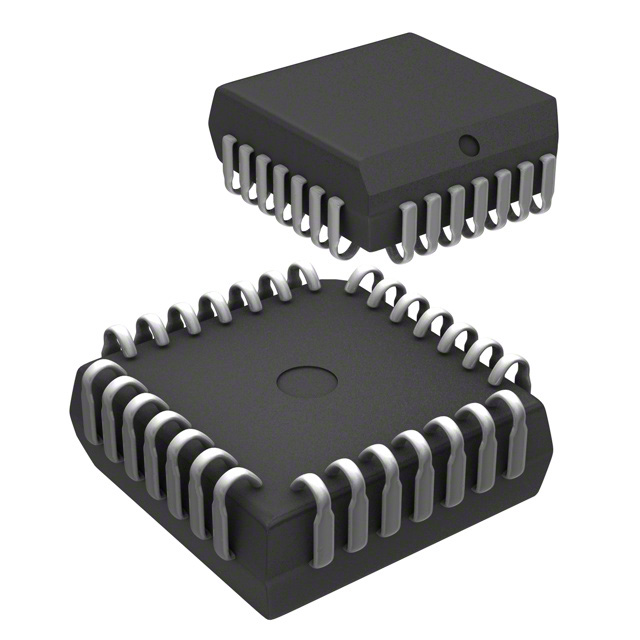

SY100E104JC-TR
IC GATE AND/NAND QUINT 28-PLCC
|
100E | Tape & Reel (TR) | Discontinued at | AND/NAND Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
SY100EL01ZI
IC GATE OR/NOR 4-INPUT 8-SOIC
|
100EL | Bulk | Discontinued at | NOR/OR Gate | 1 | 4 | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY10E404JZ
IC GATE AND/NAND QUAD 28-PLCC
|
10E | Bulk | Obsolete | AND/NAND Gate | 4 | 8 Input (2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100S301JZ-TR
IC GATE OR/NOR TRPL 5INP 28-PLCC
|
100S | Tape & Reel (TR) | Discontinued at | NOR/OR Gate | 3 | 15 Input (5, 5, 5) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY10EP01VZI-TR
IC GATE OR/NOR 3.3V/5V 4IN 8SOIC
|
10EP | Tape & Reel (TR) | Discontinued at | NOR/OR Gate | 1 | 4 | No | Differential | - | 3V ~ 5.5V |
|
|
SY100EL05ZI
IC GATE AND/NAND DIFF 2INP 8SOIC
|
100EL | Bulk | Discontinued at | AND/NAND Gate | 1 | 2 Input (1, 1) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100S302JZ-TR
IC GATE OR/NOR QUINT 2IN 28-PLCC
|
100S | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100E404JZ-TR
IC GATE AND/NAND QUAD 28-PLCC
|
100E | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 4 | 8 Input (2, 2, 2, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100S318JZ-TR
IC GATE OA/OAI 5-WIDE 28-PLCC
|
100S | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 19 Input (5, 4, 4, 4, 2) | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY100EL04ZG-TR
IC GATE AND/NAND 2-INPUT 8-SOIC
|
100EL | Tape & Reel (TR) | Obsolete | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.2V ~ 5.5V |
|
|
SY10EL04ZI
IC GATE AND/NAND 2-INPUT 8-SOIC
|
10EL | Bulk | Discontinued at | AND/NAND Gate | 1 | 2 | No | Differential | - | 4.75V ~ 5.5V |
