| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP2SGX130GF40C5NES
IC FPGA 734 I/O 1508FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
|

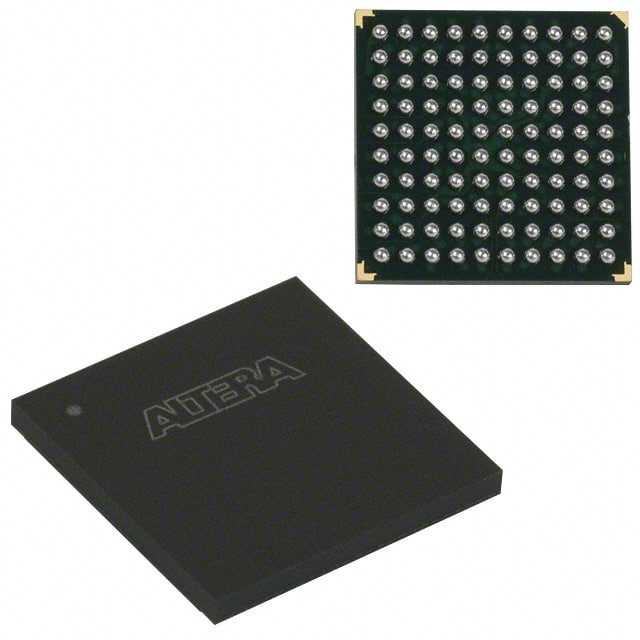

EPF6016AFC100-1
IC FPGA 81 I/O 100FBGA
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 100-LBGA | 100-FBGA (11x11) | Not Verified | 1320 |
|
1SD110PJ1F43E2VG
IC FPGA 528 I/O 1760FBGA
|
Stratix® 10 DX | Tray | Active | 0.87V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1325000 |
|
EP4S100G4F45I1
IC FPGA 781 I/O 1932FBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 353600 |
|
5SGTMC5K2F40C2N
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 425000 |
|
EPF6016AFC256-3
IC FPGA 171 I/O 256FBGA
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 256-BGA | 256-FBGA (17x17) | Not Verified | 1320 |
|
5AGTFD7K3F40I5G
IC FPGA 342 I/O 1517FBGA
|
Arria V GT | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA, FC (40x40) | Not Verified | 504000 |
|

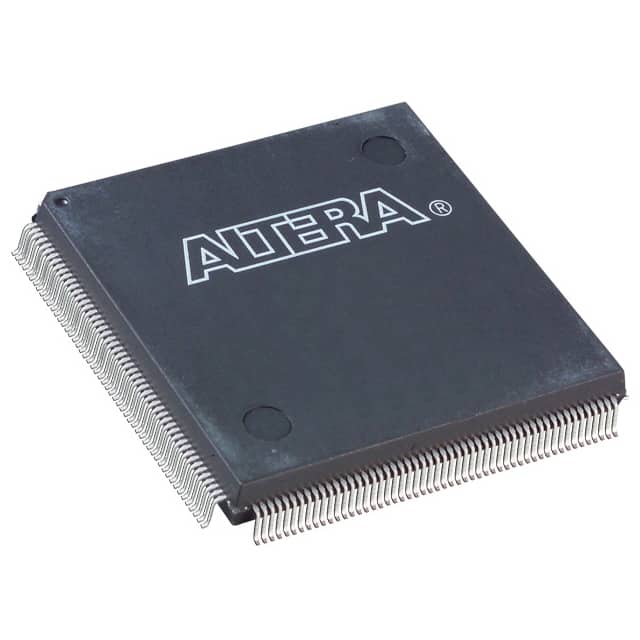

EPF6024AQC208-3N
IC FPGA 171 I/O 208QFP
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 1960 |
|
1SD280PT2F55E1VGS2
IC FPGA 816 I/O 2912FBGA
|
Stratix® 10 DX | Tray | Obsolete | - | Surface Mount | 0°C ~ 100°C (TJ) | 2912-BBGA, FCBGA | 2912-FBGA (55x55) | Not Verified | 2753000 |
|
EP1SGX25DF1020C6B
IC FPGA 607 I/O 1020FBGA
|
Stratix® GX | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 1020-BBGA | 1020-FBGA (33x33) | Not Verified | 25660 |
|
|
EP4S100G3F45I2N
IC FPGA 781 I/O 1932FBGA
|
STRATIX® IV GT | Tray | Obsolete | 0.92V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 291200 |
|
|
5AGTFD3H3F40I3G
IC FPGA 704 I/O 1517FBGA
|
Arria V GT | Tray | Active | 1.12V ~ 1.18V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA, FC (40x40) | Not Verified | 362000 |
