| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

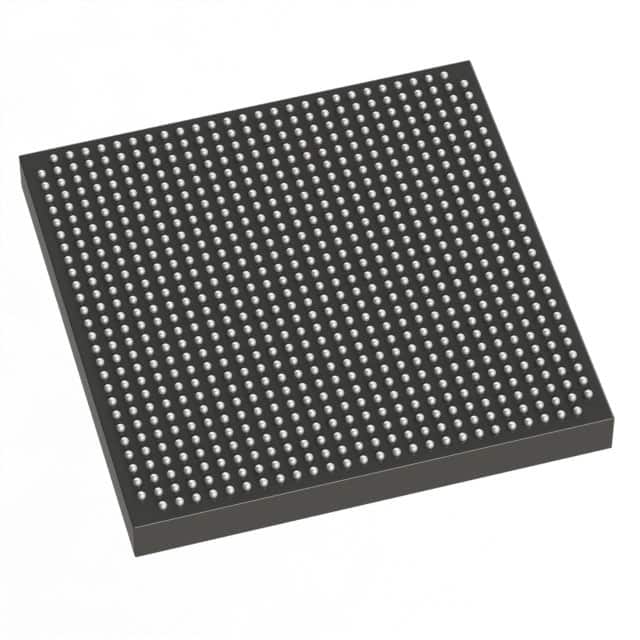

HC1S40F780NAD
IC FPGA 613 I/O 780FBGA
|
Stratix® HardCopy® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | - | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 41250 |
|
5AGTFD3H3F35I5G
IC FPGA 544 I/O 1152FBGA
|
Arria V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA, FC (35x35) | Not Verified | 362000 |
|
EP2SGX130GF40C5
IC FPGA 734 I/O 1508FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
|
HC20K400FC672
IC FPGA 672FBGA
|
APEX® HardCopy® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 16640 |
|
EP1AGX20CF780C6
IC FPGA 341 I/O 780FBGA
|
Arria GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 21580 |
|
10AT115N2F40E2SGE2
IC FPGA 600 I/O 1517FBGA
|
Arria 10 GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 1150000 |
|
5SGTMC7K3F40C2
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 622000 |
|
EP2AGZ225FF35I4N
IC FPGA 554 I/O 1152FBGA
|
Arria II GZ | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 224000 |
|

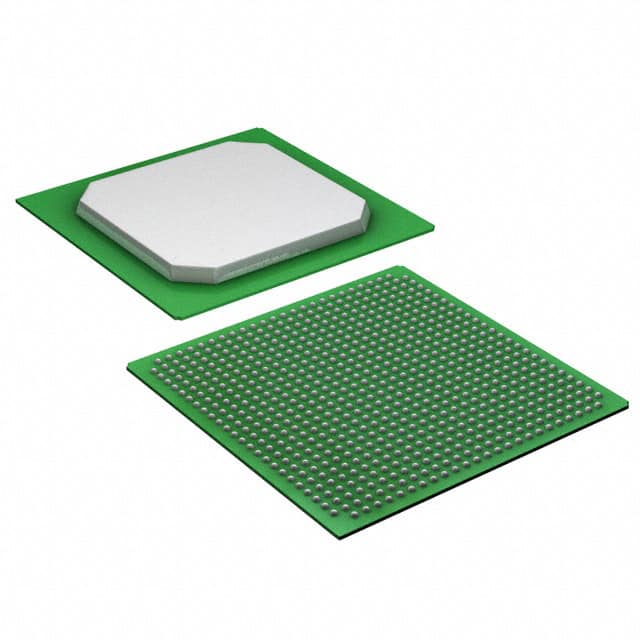

5CGTFD5C5F27I7N
IC FPGA 336 I/O 672FBGA
|
Cyclone® V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | -40°C ~ 100°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 77000 |
|
EP1AGX60EF1152C6N
IC FPGA 514 I/O 1152FBGA
|
Arria GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA | 1152-FBGA (35x35) | Not Verified | 60100 |
|
1SD110PJ2F43E1VG
IC FPGA 528 I/O 1760FBGA
|
Stratix® 10 DX | Tray | Active | 0.87V ~ 0.97V | Surface Mount | 0°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1325000 |
|
|
EP2SGX130GF40C5NES
IC FPGA 734 I/O 1508FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
