| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5SGSMD4H1F35I2G
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|

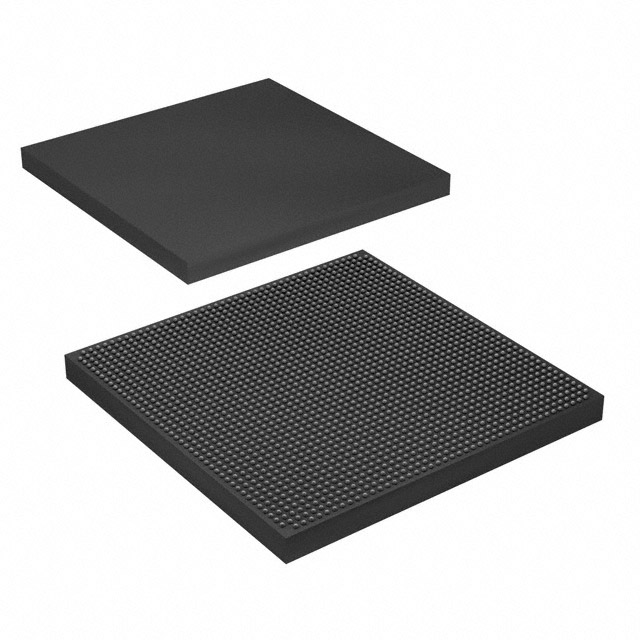

5SGSMD8N2F45C2G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|
5SGSMD8N2F45C2LG
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|
5SGSMD5H1F35I2G
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|
5SGSMD5K2F40I3G
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 457000 |
|
5SGSMD4H3F35C2G
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|
5SGSMD8N3F45I3G
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|
5SGSMD4H3F35C2LG
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 360000 |
|
1SG040HH3F35E3XG
IC FPGA STRATIX10GX 1152FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 378000 |
|
5SGSMD4K2F40C2LG
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Active | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 360000 |
|
1SG110HN2F43I2LGAS
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1100000 |
|
1SG110HN3F43I3XG
IC FPGA 688 I/O 1760FBGA
|
Stratix® 10 GX | Tray | Active | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1100000 |
