| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

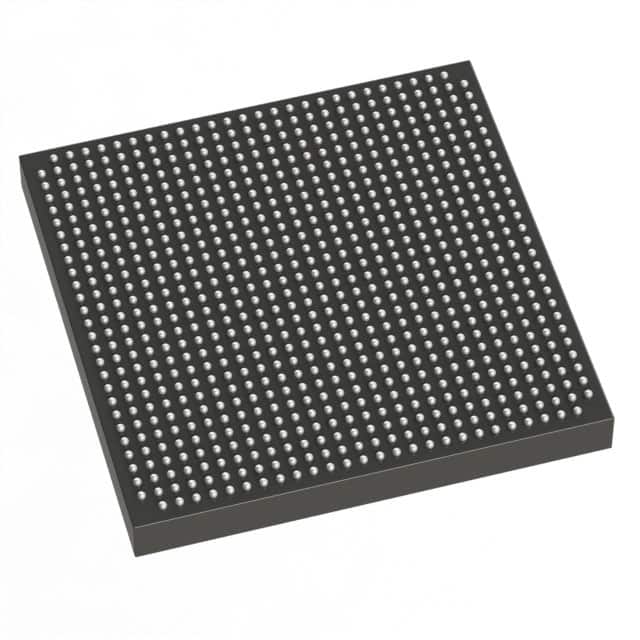

HC1S30F780NAB
IC FPGA 597 I/O 780FBGA
|
Stratix® HardCopy® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | - | 780-BBGA, FCBGA | 780-FBGA (29x29) | Not Verified | 32470 |
|
EP2SGX90FF1508C5N
IC FPGA 650 I/O 1508FBGA
|
Stratix® II GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | 0°C ~ 85°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 90960 |
|
5AGTFD3H3F35I3G
IC FPGA 544 I/O 1152FBGA
|
Arria V GT | Tray | Active | 1.12V ~ 1.18V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA, FC (35x35) | Not Verified | 362000 |
|
EP1AGX60DF780I6N
IC FPGA 350 I/O 780FBGA
|
Arria GX | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA | 780-FBGA (29x29) | Not Verified | 60100 |
|
5SGTMC7K3F40C1
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 622000 |
|
HC20K600FC672NAA
IC FPGA 672FBGA
|
APEX® HardCopy® | Tray | Obsolete | 1.71V ~ 1.89V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BBGA | 672-FBGA (27x27) | Not Verified | 24320 |
|
EPF6024AQC240-3N
IC FPGA 199 I/O 240QFP
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 1960 |
|

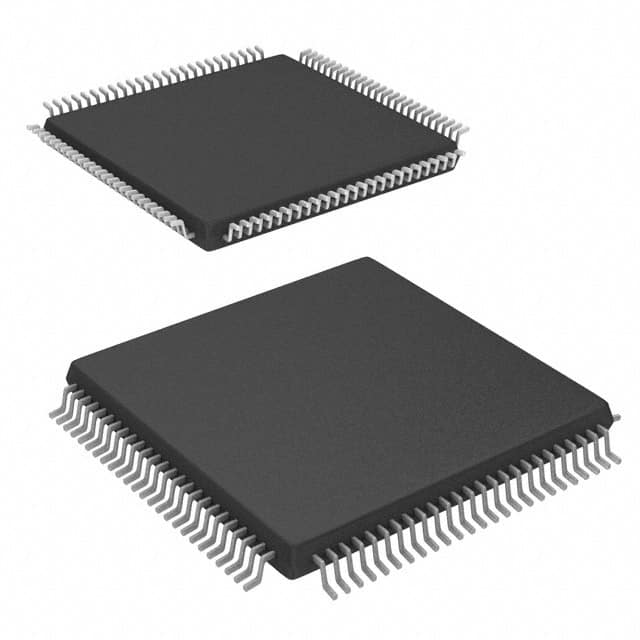

EPF6010ANTC100-1
IC FPGA 71 I/O 100TQFP
|
FLEX 6000 | Tray | Obsolete | 3V ~ 3.6V | Surface Mount | 0°C ~ 85°C (TJ) | 100-TQFP | 100-TQFP (14x14) | Not Verified | 880 |
|
1SD110PJ1F43I2VG
IC FPGA 528 I/O 1760FBGA
|
Stratix® 10 DX | Tray | Active | 0.87V ~ 0.97V | Surface Mount | -40°C ~ 100°C (TJ) | 1760-BBGA, FCBGA | 1760-FBGA (42.5x42.5) | Not Verified | 1325000 |
|
|
5SGTMC7K3F40C2WN
IC FPGA 600 I/O 1517FBGA
|
Stratix® V GT | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 622000 |
|
EP2AGZ300FH29I4N
IC FPGA 281 I/O 780HBGA
|
Arria II GZ | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 298000 |
|

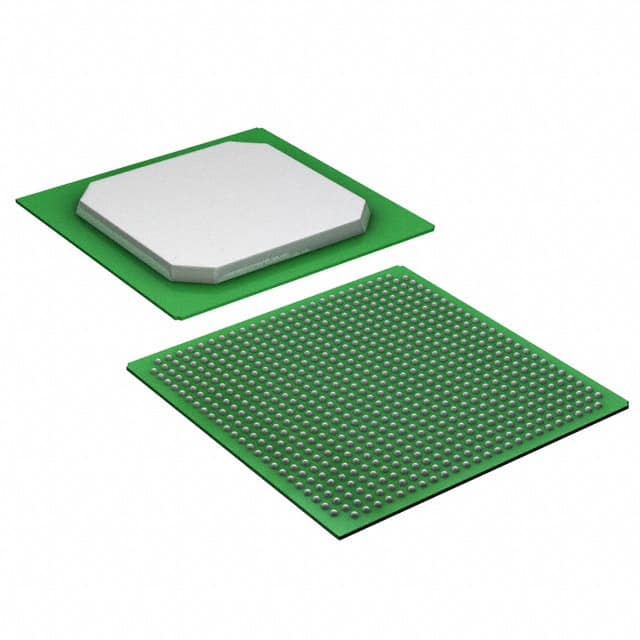

5CGTFD5C5F27C7N
IC FPGA 336 I/O 672FBGA
|
Cyclone® V GT | Tray | Active | 1.07V ~ 1.13V | Surface Mount | 0°C ~ 85°C (TJ) | 672-BGA | 672-FBGA (27x27) | Not Verified | 77000 |
