| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP3SE50F484I4L
IC FPGA 296 I/O 484FBGA
|
Stratix® III E | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | -40°C ~ 100°C (TJ) | 484-BBGA, FCBGA | 484-FBGA (23x23) | Not Verified | 47500 |
|
EP3SE110F1152I4LN
IC FPGA 744 I/O 1152FBGA
|
Stratix® III E | Tray | Obsolete | 0.86V ~ 1.15V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 107500 |
|
5SGSED8K2F40I2LNAA
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 695000 |
|
5SGSMD3H1F35C1WN
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
10AX115N2F40E2SG
IC FPGA 600 I/O 1517FCBGA
|
Arria 10 GX | Tray | Active | 0.87V ~ 0.98V | Surface Mount | 0°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FCBGA (40x40) | Not Verified | 1150000 |
|
5SGSMD3H2F35C1WN
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
5SGSMD3H2F35I3LN
IC FPGA 432 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 236000 |
|
EP20K100CQ240C7
IC FPGA 189 I/O 240QFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 240-BFQFP | 240-PQFP (32x32) | Not Verified | 4160 |
|
5SGSMD5H1F35C1WN
IC FPGA 552 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 457000 |
|
5SGSMD4E2H29I3WN
IC FPGA 360 I/O 780HBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 780-BBGA, FCBGA | 780-HBGA (33x33) | Not Verified | 360000 |
|

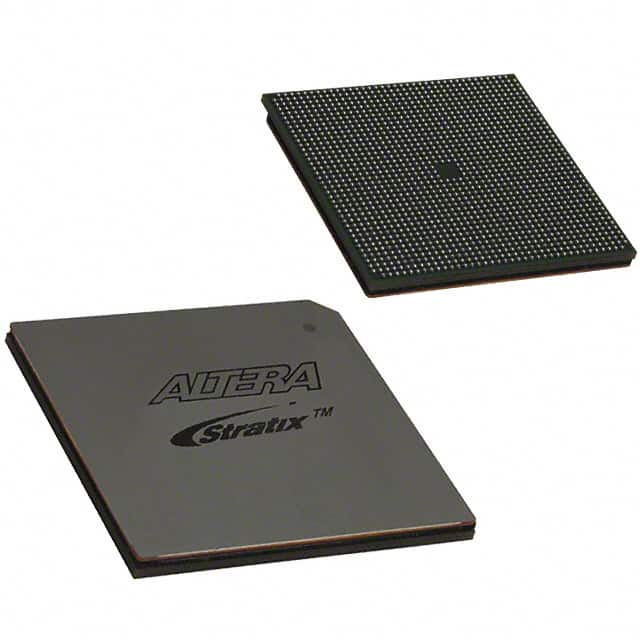

EP2S130F1508I5
IC FPGA 1126 I/O 1508FBGA
|
Stratix® II | Tray | Obsolete | 1.15V ~ 1.25V | Surface Mount | -40°C ~ 100°C (TJ) | 1508-BBGA, FCBGA | 1508-FBGA, FC (40x40) | Not Verified | 132540 |
|

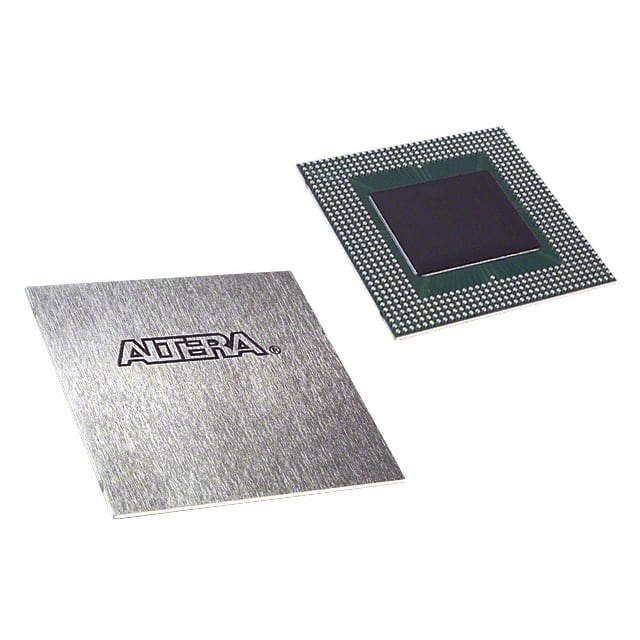

EP20K400BC652-2AA
IC FPGA 502 I/O 652BGA
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 652-BGA | 652-BGA (45x45) | Not Verified | 16640 |
