| Image | Mfr Part # | Series | Package | Product Status | Voltage - Supply | Mounting Type | Operating Temperature | Package / Case | Supplier Device Package | Programmable | Number of Logic Elements/Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP20K100FC144-2
IC FPGA 93 I/O 144TQFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 4160 |
|

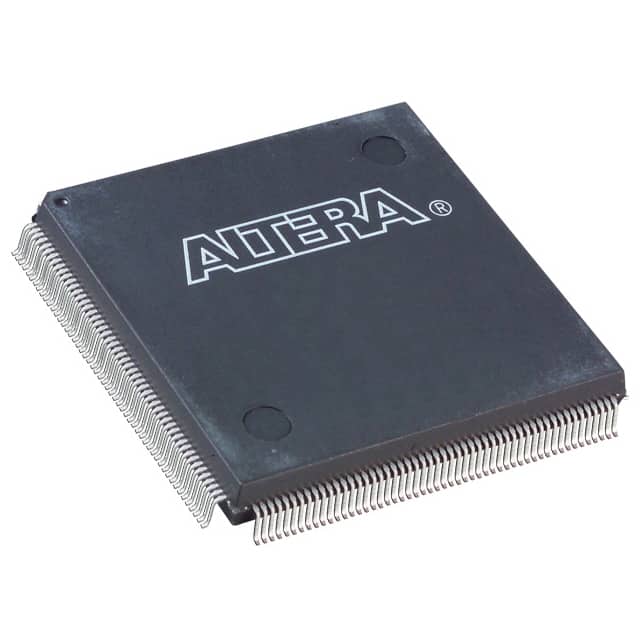

EP20K100CQ208C7ES
IC FPGA 159 I/O 208QFP
|
APEX-20K® | Tray | Obsolete | 2.375V ~ 2.625V | Surface Mount | 0°C ~ 85°C (TJ) | 208-BFQFP | 208-PQFP (28x28) | Not Verified | 4160 |
|
5SGSED8N2F45I2CV
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | -40°C ~ 100°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|
5SGSMD5H3F35M4
IC FPGA 172600 I/O 1152FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.93V | Surface Mount | -40°C ~ 125°C (TJ) | 1152-BBGA, FCBGA | 1152-FBGA (35x35) | Not Verified | 690400 |
|
5SGSMD5K2F40C2N
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 457000 |
|
EP1C6T144C8
IC FPGA 98 I/O 144TQFP
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 144-LQFP | 144-TQFP (20x20) | Not Verified | 5980 |
|
|
5SGSED8N2F45C2L
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 695000 |
|

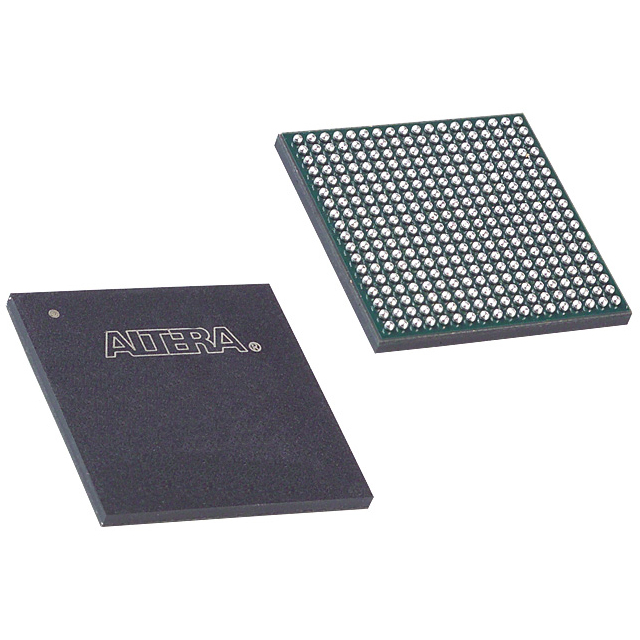

EP1C12F324I7
IC FPGA 249 I/O 324FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | -40°C ~ 100°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 12060 |
|
5SGSMD6K2F40I3N
IC FPGA 696 I/O 1517FBGA
|
Stratix® V GS | Tray | Obsolete | 0.82V ~ 0.88V | Surface Mount | -40°C ~ 100°C (TJ) | 1517-BBGA, FCBGA | 1517-FBGA (40x40) | Not Verified | 583000 |
|
EP1C12F256C8
IC FPGA 185 I/O 256FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 256-BGA | 256-FBGA (17x17) | Not Verified | 12060 |
|
EP1C4F324C8N
IC FPGA 249 I/O 324FBGA
|
Cyclone® | Tray | Obsolete | 1.425V ~ 1.575V | Surface Mount | 0°C ~ 85°C (TJ) | 324-BGA | 324-FBGA (19x19) | Not Verified | 4000 |
|
|
5SGSED6N3F45C2N
IC FPGA 840 I/O 1932FBGA
|
Stratix® V GS | Tray | Obsolete | 0.87V ~ 0.93V | Surface Mount | 0°C ~ 85°C (TJ) | 1932-BBGA, FCBGA | 1932-FBGA, FC (45x45) | Not Verified | 583000 |
