| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCT14QPWRQ1
IC INVERTER 6CH 1-INP 14TSSOP
|
Automotive, AEC-Q100, 74HCT | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
SN74AUP2G04DRYR
IC INVERTER 2CH 2-INP 6SON
|
74AUP | Tape & Reel (TR) | Active | Inverter | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
|
84041012A
MILITARY 4-CH, 2-INPUT, 2-V TO 6
|
54HC | Tube | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
CD4011BF
MILITARY 4-CH, 2-INPUT, 3-V TO 1
|
4011B | Tube | Active | NAND Gate | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74AUP1G02DRY2
IC GATE NOR 1CH 2-INP 6SON
|
74AUP | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | - | - |
|
|
SNJ54HC08W
MILITARY 4-CH, 2-INPUT, 2-V TO 6
|
54HC | Tube | Active | AND Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
JM38510/65003BCA
MILITARY 2-CH, 4-INPUT, 2-V TO 6
|
54HC | Tube | Active | NAND Gate | 4 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD4009UBPW
IC INVERTER 6CH 1-INP 16TSSOP
|
4000B | Tube | Obsolete | Inverter | 1 | - | 3V ~ 18V | 1.5mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V |
|

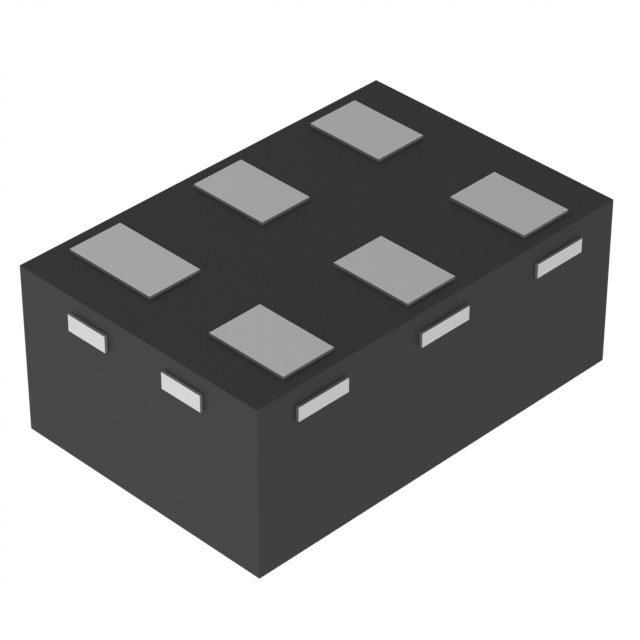

SN74LVC1G125DRYR
IC BUFFER NON-INVERT 5.5V 6SON
|
74LVC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
|
JM38510/30301BCA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54LS02 | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74HC02DE4
IC GATE NOR 4CH 2-INP 14SOIC
|
74HC | Bulk | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74AUP1G08DCKRE4
IC GATE AND 1CH 2-INP SC70-5
|
74AUP | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 0.8V ~ 3.6V | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V |
