| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN54LS02J
IC GATE NOR 4CH 2-INP 14CDIP
|
54LS | Tube | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74LS266NSRG4
IC GATE XNOR OPEN 4CH 2-IN 14SOP
|
74LS | Tape & Reel (TR) | Obsolete | XNOR (Exclusive NOR) | 2 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|

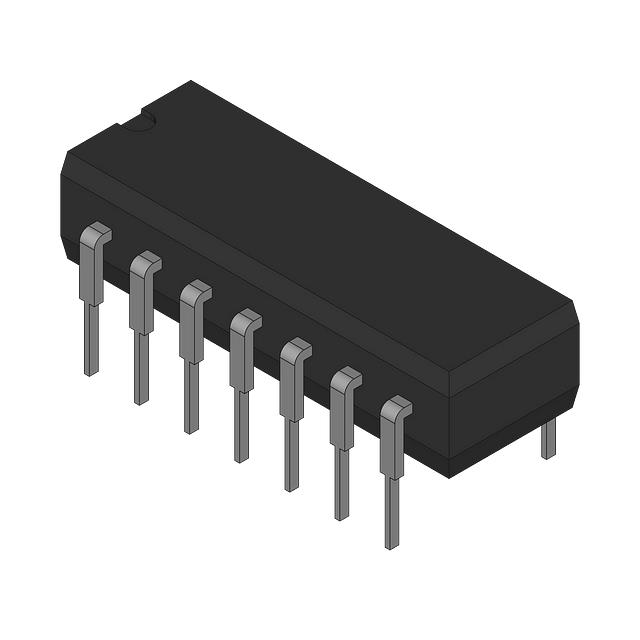

SN7427N10
TRIPLE 3-INPUT NOR GATE,
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
SN74HCT14DE4
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74HCT | Tube | Discontinued at | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
DM5437W/883
NAND GATE, TTL/H/L SERIES, TTL
|
- | Bulk | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 1.2mA, 48mA | 0.8V | 2V |
|
SN74HCT32APWLE
IC GATE NOR 4CH 2-INP 14TSSOP
|
74HCT | Bulk | Active | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.8V | 2V |
|
SN74HCS4075QPWRQ1
IC GATE OR 3CH 3IN 14TSSOP
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | OR Gate | 3 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74LS32DE4
IC GATE OR 4CH 2-INP 14SOIC
|
74LS | Tube | Discontinued at | OR Gate | 2 | - | 4.75V ~ 5.25V | 400µA, 8mA | 0.8V | 2V |
|
|
SN54AC00VTD2
IC GATE NAND 4CH 2-INP DIE
|
- | Tube | Active | NAND Gate | 2 | - | 2V ~ 6V | - | - | - |
|
SN74LS266NSR
IC GATE XNOR OPEN 4CH 2-IN 14SOP
|
74LS | Tape & Reel (TR) | Obsolete | XNOR (Exclusive NOR) | 2 | Open Collector | 4.75V ~ 5.25V | -, 8mA | 0.8V | 2V |
|
|
M38510/31001BCA
MILITARY 3-CH, 3-INPUT, 4.5-V TO
|
54LS | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74HCS02QPWRQ1
IC GATE NOR 4CH 2-INP 14TSSOP
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | NOR Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
