| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74S86N
IC GATE XOR 4CH 2-INP 14-DIP
|
74S | Tube | Obsolete | XOR (Exclusive OR) | 2 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|
SN74AS1008ADR
IC GATE AND 4CH 2-INP 14SOIC
|
74AS | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
SN7438DRE4
IC GATE NAND 4CH 2-INP 14-SOIC
|
7400 | Bulk | Active | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 48mA | 0.8V | 2V |
|
SN74AS20DR
IC GATE NAND 2CH 4-INP 14SOIC
|
74AS | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | - | 4.5V ~ 5.5V | 2mA, 20mA | 0.8V | 2V |
|
SN7406NSR
IC INV OPEN COL 6CH 1-IN 14SOP
|
7400 | Tape & Reel (TR) | Active | Inverter | 1 | Open Collector | 4.75V ~ 5.25V | -, 40mA | 0.8V | 2V |
|
SN74AS08DBR
IC GATE AND 4CH 2-INP 14SSOP
|
74AS | Bulk | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 2mA, 20mA | 0.8V | 2V |
|

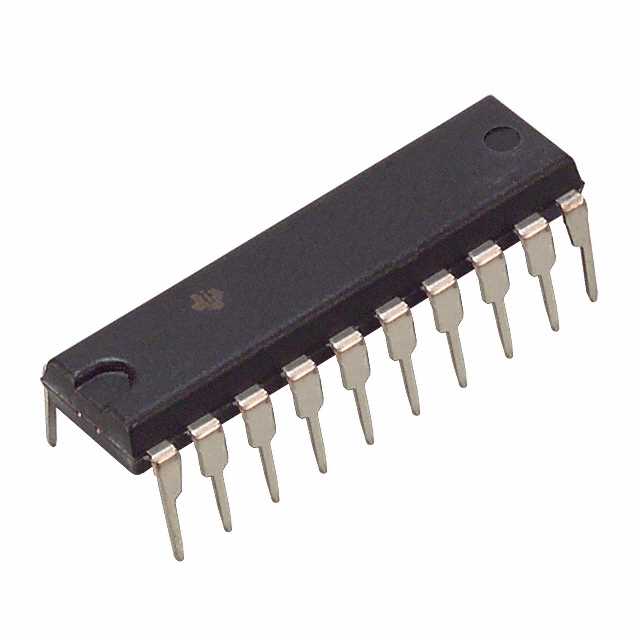

SN74AS832BN
IC GATE OR 6CH 2-INP 20DIP
|
74AS | Tube | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
SN74HCS266QDRQ1
IC GATE XNOR 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | XNOR (Exclusive NOR) | 2 | Schmitt Trigger Input | 2V ~ 6V | -, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74HC86IPWRG4Q1
IC GATE XOR 4CH 2-INP 14TSSOP
|
Automotive, AEC-Q100, 74HC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
74S20PC
NAND GATE
|
74S | Bulk | Active | NAND Gate | 4 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
|
SN74S38N
IC GATE NAND OPEN 4CH 2-IN 14DIP
|
74S | Tube | Active | NAND Gate | 2 | Open Collector | 4.75V ~ 5.25V | -, 60mA | 0.8V | 2V |
|
SN74AS1008ADRE4
IC GATE AND 4CH 2-INP 14SOIC
|
74AS | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
