| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SNJ54ALS10AJ
IC GATE NAND 3CH 3-INP 14CDIP
|
54ALS | Tube | Active | NAND Gate | 3 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
|
SN54ALS04BJ
MILITARY 6-CH, 4.5-V TO 5.5-V BI
|
54ALS | Tube | Active | Inverter | 6 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
|
SNJ54ALS11AJ
IC GATE AND 3CH 3-INP 14CDIP
|
54ALS | Tube | Active | AND Gate | 3 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
|
SN54ALS804AJ
IC GATE NAND 6CH 2-INP 20CDIP
|
54ALS | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 12mA, 12mA | 0.7V | 2V |
|
|
5962-8854001DA
MILITARY 6-CH, 4.5-V TO 5.5-V BI
|
54ALS | Tube | Active | Inverter | 6 | Open Collector | 4.5V ~ 5.5V | 100µA, 4mA | 0.7V | 2V |
|
SN74HCS32QPWRQ1
IC GATE OR 4CH 2IN 14TSSOP
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | OR Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74HCS30DR
IC LOGIC GATES
|
74HCS | Tape & Reel (TR) | Active | NAND Gate | 8 | Schmitt Trigger Input | 2V ~ 6V | -, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
|
M38510/37302BCA
IC GATE NOR 3CH 3-INP 14CDIP
|
54ALS | Tube | Active | NOR Gate | 3 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|

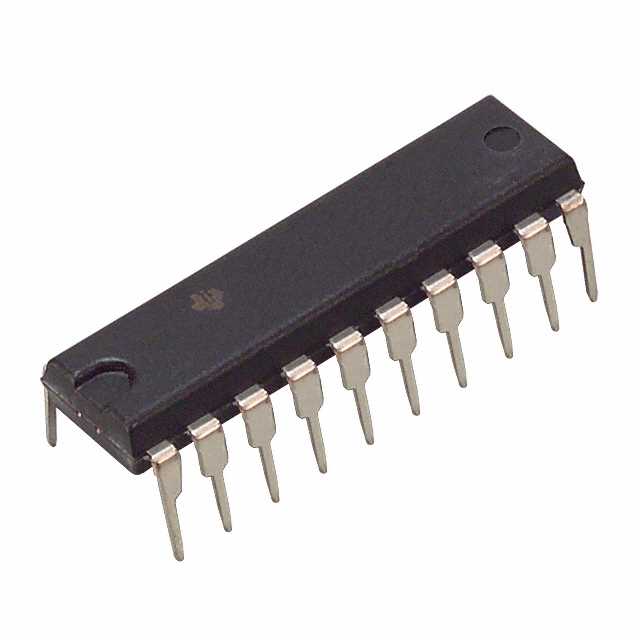

SN74AS832BNG4
IC GATE OR 6CH 2-INP 20DIP
|
74AS | Tube | Discontinued at | OR Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
|
M38510/37003BCA
IC GATE NAND 2CH 4-INP 14CDIP
|
54ALS | Tube | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | 400µA, 400µA | 0.8V | 2V |
|
|
SNJ54ALS21AFK
IC GATE AND 2CH 4-INP 20LCCC
|
54ALS | Tube | Active | AND Gate | 4 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
|
|
JM38510/37001BCA
MILITARY 4-CH, 2-INPUT, 4.5-V TO
|
54ALS | Tube | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.8V | 2V |
