| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCS11QDRQ1
IC GATE AND 3CH 3IN 14SOIC
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | AND Gate | 3 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74HCS04PWR
IC INVERTER 6CH 1-INP 14TSSOP
|
74HCS | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
JM54AC04SDA-RH
54AC04 - HEX INVERTER - (SMD - J
|
54AC | Bulk | Active | Inverter | 1 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|

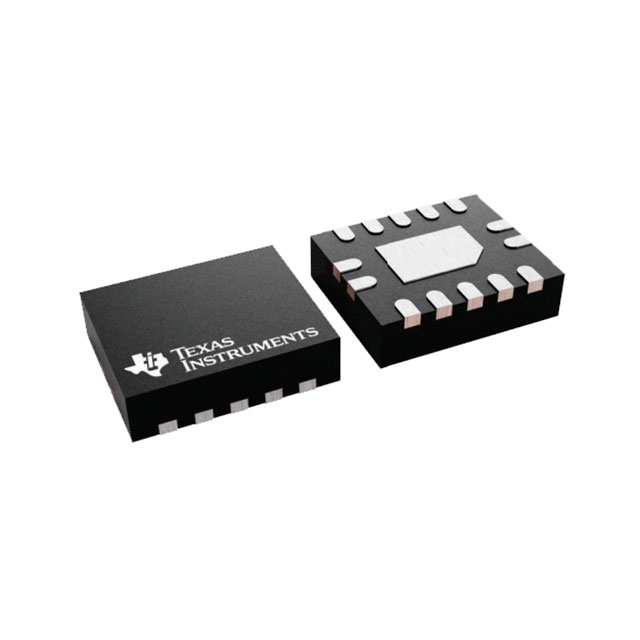

SN74HCS02BQAR
QUADRUPLE 2-INPUT NOR GATES WITH
|
74HCS | Tape & Reel (TR) | Active | NOR Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74HCS266PWR
IC LOGIC GATES
|
74HCS | Tape & Reel (TR) | Active | XNOR (Exclusive NOR) | 2 | Schmitt Trigger, Open Drain | 2V ~ 6V | -, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74HCS7266QPWRQ1
IC GATE XNOR 4CH 2-INP 14TSSOP
|
Automotive, AEC-Q100, 74HCS | Tape & Reel (TR) | Active | XNOR (Exclusive NOR) | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
|
JM54AC14SYA-RH
54AC14 - HEX INVERTER SCHMITT TR
|
54AC | Bulk | Active | Inverter | 1 | Schmitt Trigger Input | 2V ~ 6V | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V |
|
SN74LVC86AQDRG4Q1
IC GATE XOR 4CH 2-INP 14SOIC
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
SN74HCS21PWR
IC GATE AND 2CH 4-INP 14TSSOP
|
74HCS | Tape & Reel (TR) | Active | AND Gate | 4 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|

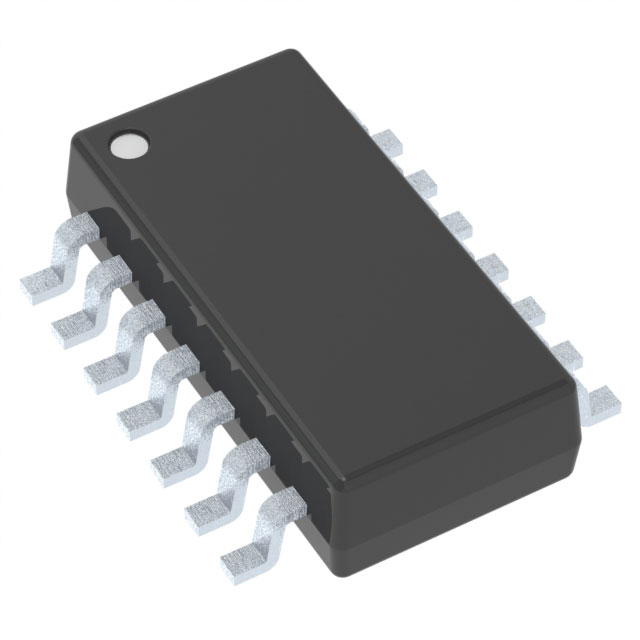

SN74HCS00DYYR
4-CH, 2-INPUT, 2-V TO 6-V LOW PO
|
74HCS | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
|
SN74LVC86AQPWRQ1
IC GATE XOR 4CH 2-INP 14TSSOP
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
SN74HCS14DR
IC INV SCHMITT 6CH 1-IN 14SOIC
|
74HCS | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger Input | 2V ~ 6V | 7.8mA, 7.8mA | 1V ~ 3V | 1.5V ~ 4.2V |
