| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4030BE
IC GATE XOR 4CH 2-INP 14DIP
|
4000B | Tube | Active | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4070BF
MILITARY 4-CH, 2-INPUT, 3-V TO 1
|
4000B | Tube | Active | XOR (Exclusive OR) | 2 | - | 3V ~ 18V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74LVC1G00DCKR
IC GATE NAND 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD4001UBPW
IC GATE NOR 4CH 2-INP 14TSSOP
|
4000B | Tube | Active | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V |
|
|
CD4023BE
IC GATE NAND 3CH 3-INP 14DIP
|
4000B | Tube | Active | NAND Gate | 3 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74LVC1G132DCKR
IC GATE NAND 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
CD4011BPWRG4
IC GATE NAND 4CH 2-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|

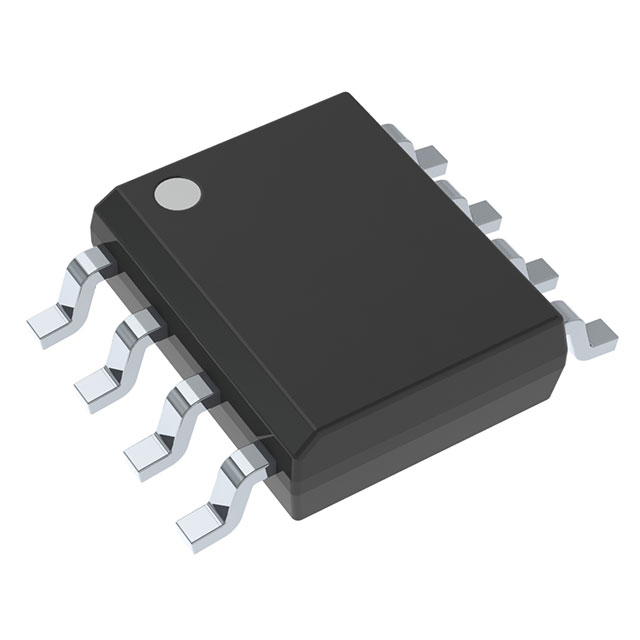

CD40107BM96
IC GATE NAND OD 2CH 2-INP 8SOIC
|
4000B | Tape & Reel (TR) | Active | NAND Gate | 2 | Open Drain | 3V ~ 18V | -, 68mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
CD4001BPW
IC GATE NOR 4CH 2-INP 14TSSOP
|
4000B | Tube | Discontinued at | NOR Gate | 2 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74HC02PWR
IC GATE NOR 4CH 2-INP 14TSSOP
|
74HC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
CD4012BNSR
IC GATE NAND 2CH 4-INP 14SOP
|
4000B | Tape & Reel (TR) | Active | NAND Gate | 4 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
SN74LVC1G08DRY2
IC GATE AND 1CH 2-INP 6SON
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
