| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HC7032DRG4
IC GATE OR SCHMIT 4CH 2IN 14SOIC
|
74HC | Tape & Reel (TR) | Obsolete | OR Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V |
|
CD4082BPWRE4
IC GATE AND 2CH 4-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Discontinued at | AND Gate | 4 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
SN74LVC32ADR
IC GATE OR 4CH 2-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | OR Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
|
SN74HC11DG4
IC GATE AND 3CH 3-INP 14SOIC
|
74HC | Tube | Active | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC1G08MDCKREP
IC GATE AND 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|

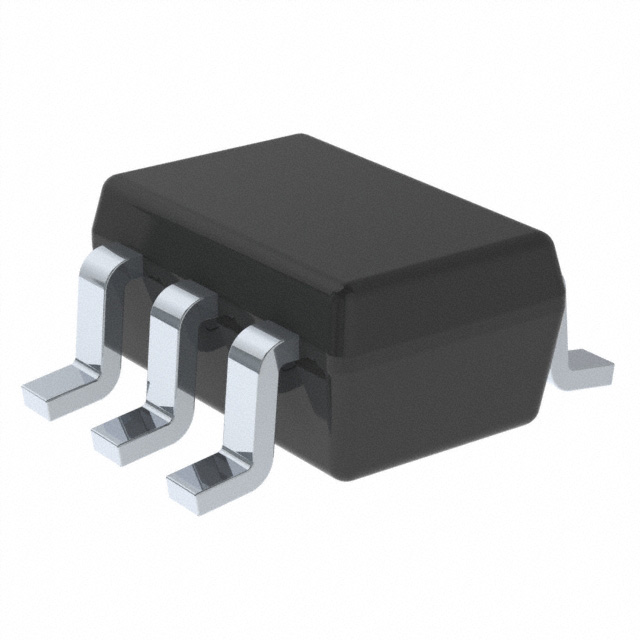

SN74LVC2G14DCK3
IC INVERT SCHMITT 2CH 2IN SC70-6
|
74LVC | Tape & Reel (TR) | Active | Inverter | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V |
|
CD74HC86E-NG
PROTOTYPE
|
74HC | Bulk | Active | XOR (Exclusive OR) | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
SN74LVC1G11DBVR
IC GATE AND 1CH 3-INP SOT23-6
|
74LVC | Tape & Reel (TR) | Active | AND Gate | 3 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD4072BPWRG4
IC GATE OR 2CH 4-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Obsolete | OR Gate | 4 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|

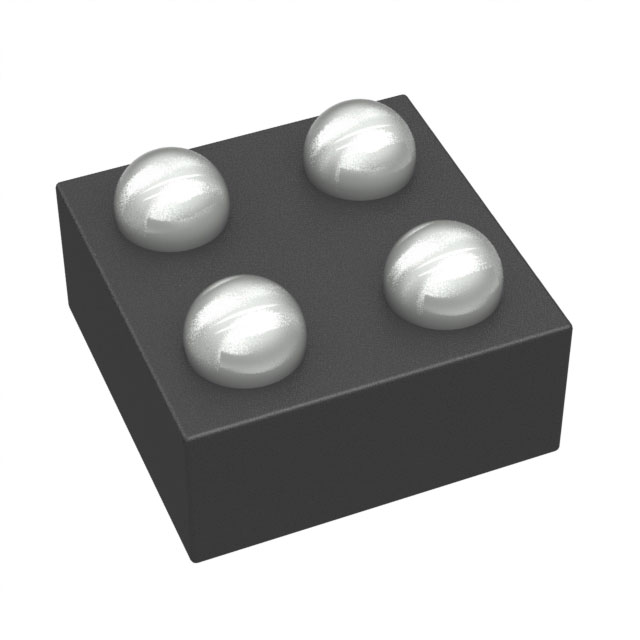

SN74LVC1GU04YZVR
IC INVERTER 1CH 1-INP 4DSBGA
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
CD4002BE
IC GATE NOR 2CH 4-INP 14DIP
|
4000B | Tube | Active | NOR Gate | 4 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
CD4073BPWR
IC GATE AND 3CH 3-INP 14TSSOP
|
4000B | Tape & Reel (TR) | Active | AND Gate | 3 | - | 3V ~ 18V | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V |
